Cabin Temperature Sensor / Switch: Testing and Inspection

CABIN TEMPERATURE SENSOR INSPECTION

1. Measure the temperature around the cabin temperature sensor and measure the resistance between cabin temperature sensor terminal.

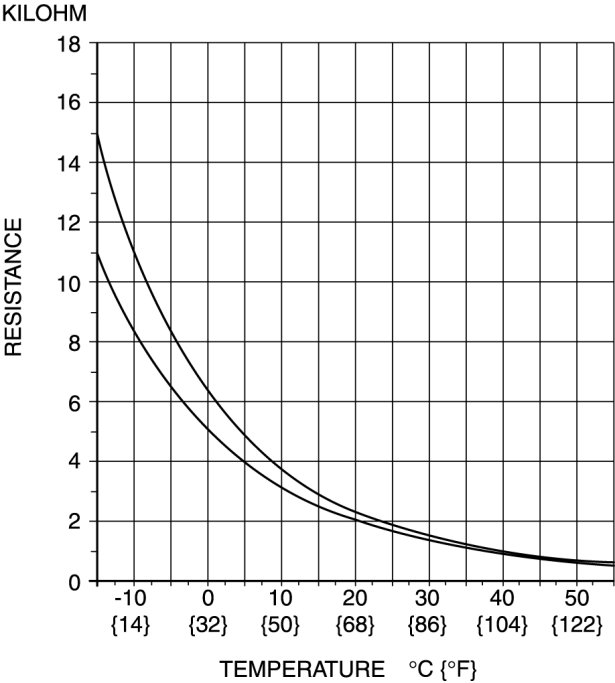

- If the characteristics of the cabin temperature sensor are not as shown in the graph, replace the cabin temperature sensor.
