REAR CLIMATE CONTROL UNIT INSPECTION

1. Connect the rear climate control unit connector.

2. Switch the ignition to ON.

3. Connect the negative (-) lead of the tester to body ground.

4. By inserting the positive (+) lead of the tester into each rear climate control unit terminal, measure the voltage according to the terminal voltage table.

- If there is any malfunction, inspect the parts under "Inspection item (s)".

- If the parts under "Inspection item (s)" are found to be normal, replace the rear climate control unit.

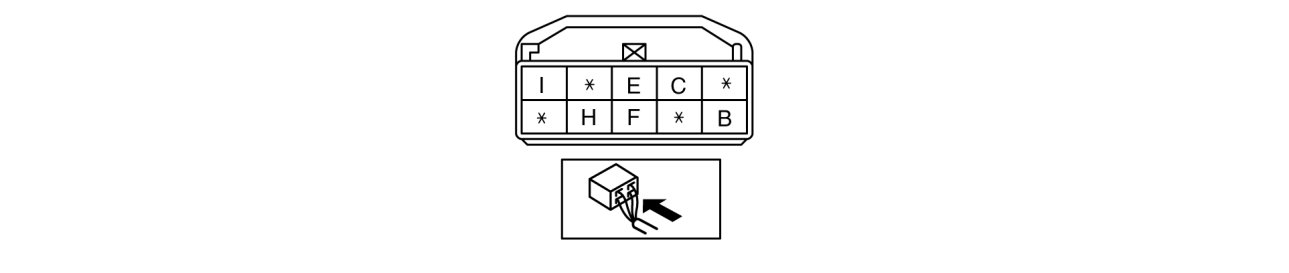

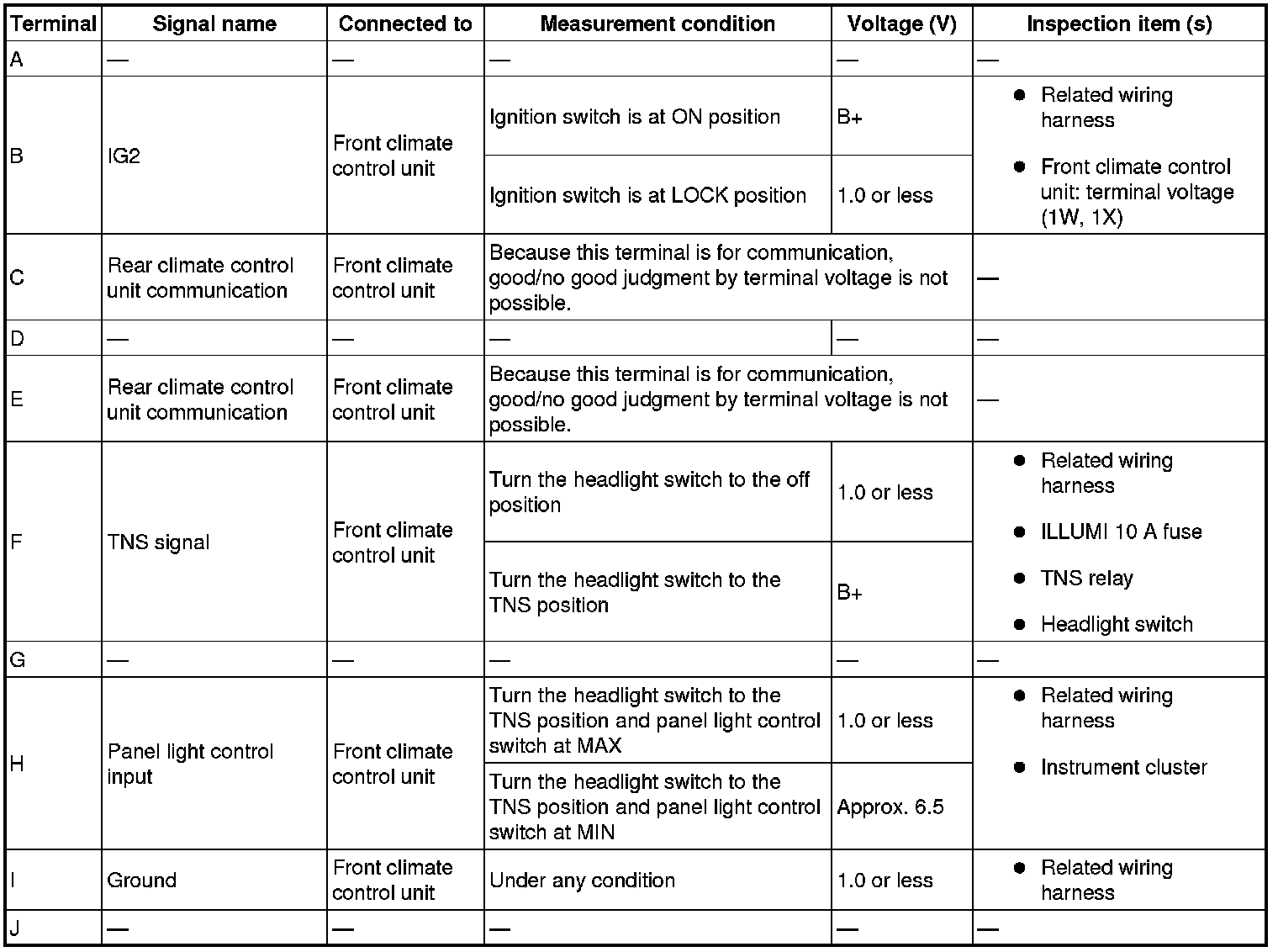

Terminal voltage table (Reference)
