Front Evaporator Temperature Sensor Inspection

FRONT EVAPORATOR TEMPERATURE SENSOR INSPECTION

1. Set the fan speed MAX HI.

2. Set the temperature control at MAX COLD.

3. Set the RECIRCULATE mode.

4. Turn the A/C switch off.

5. Close all doors and windows.

6. Wait for 5 min.

7. Remove the glove compartment Service and Repair

8. Disconnect the front evaporator temperature sensor connector.

9. Measure the temperature at the blower inlet.

10. Measure the resistance between the front evaporator temperature sensor terminals.

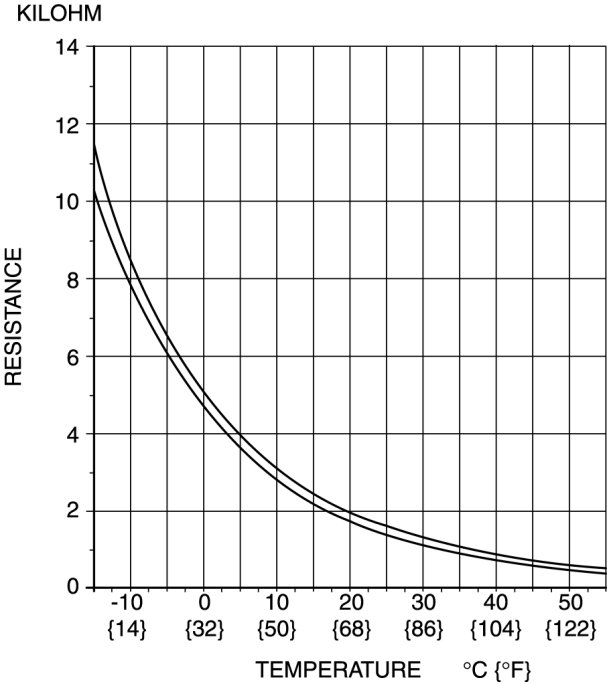

- If the resistance is not as shown in the graph, replace the front evaporator temperature sensor.
