No. 11 Dual A/C Control Does Not Operate
No. 11 Dual A/C Control Does Not Operate

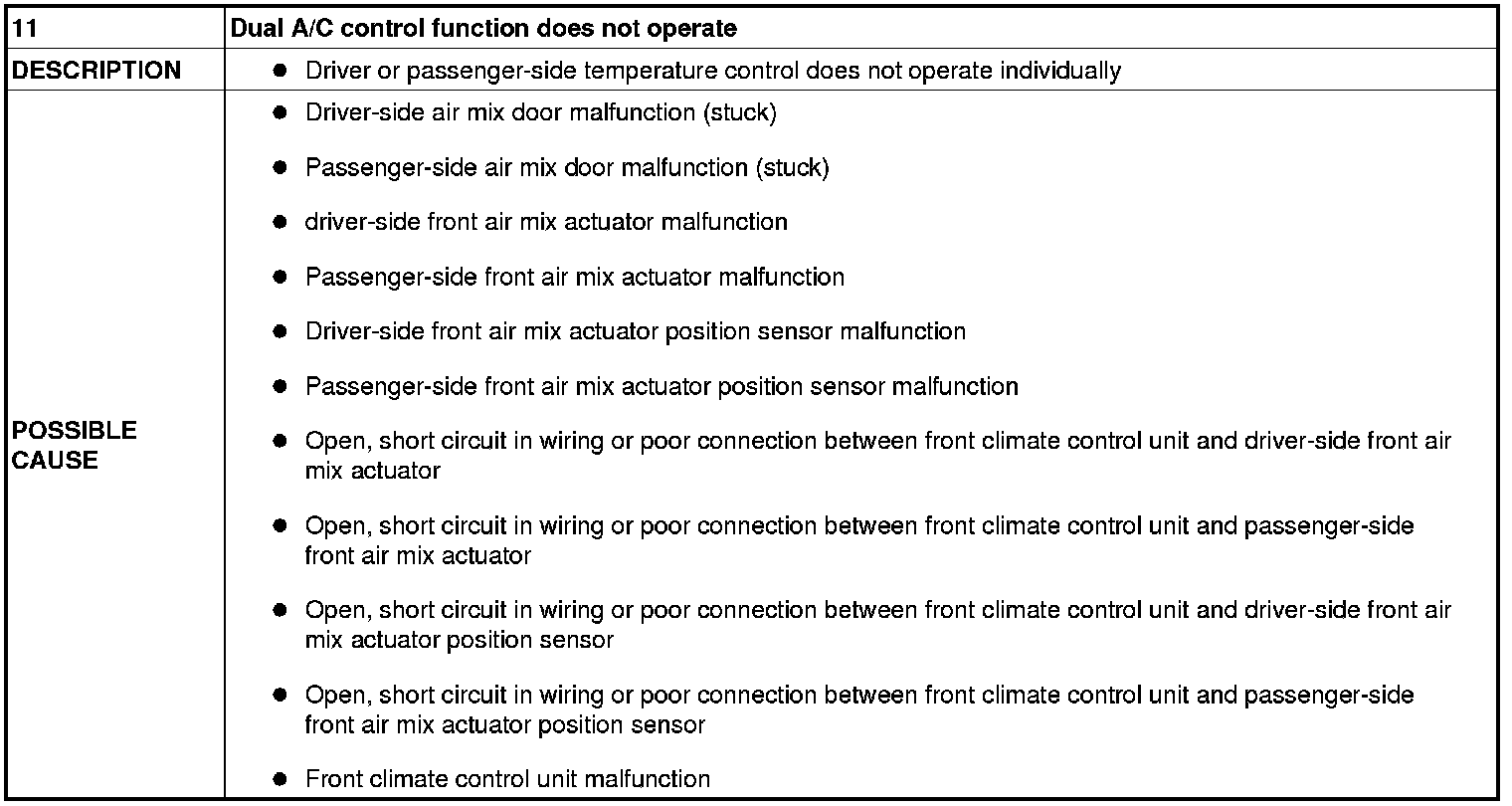

NO.11 DUAL A/C CONTROL DOES NOT OPERATE

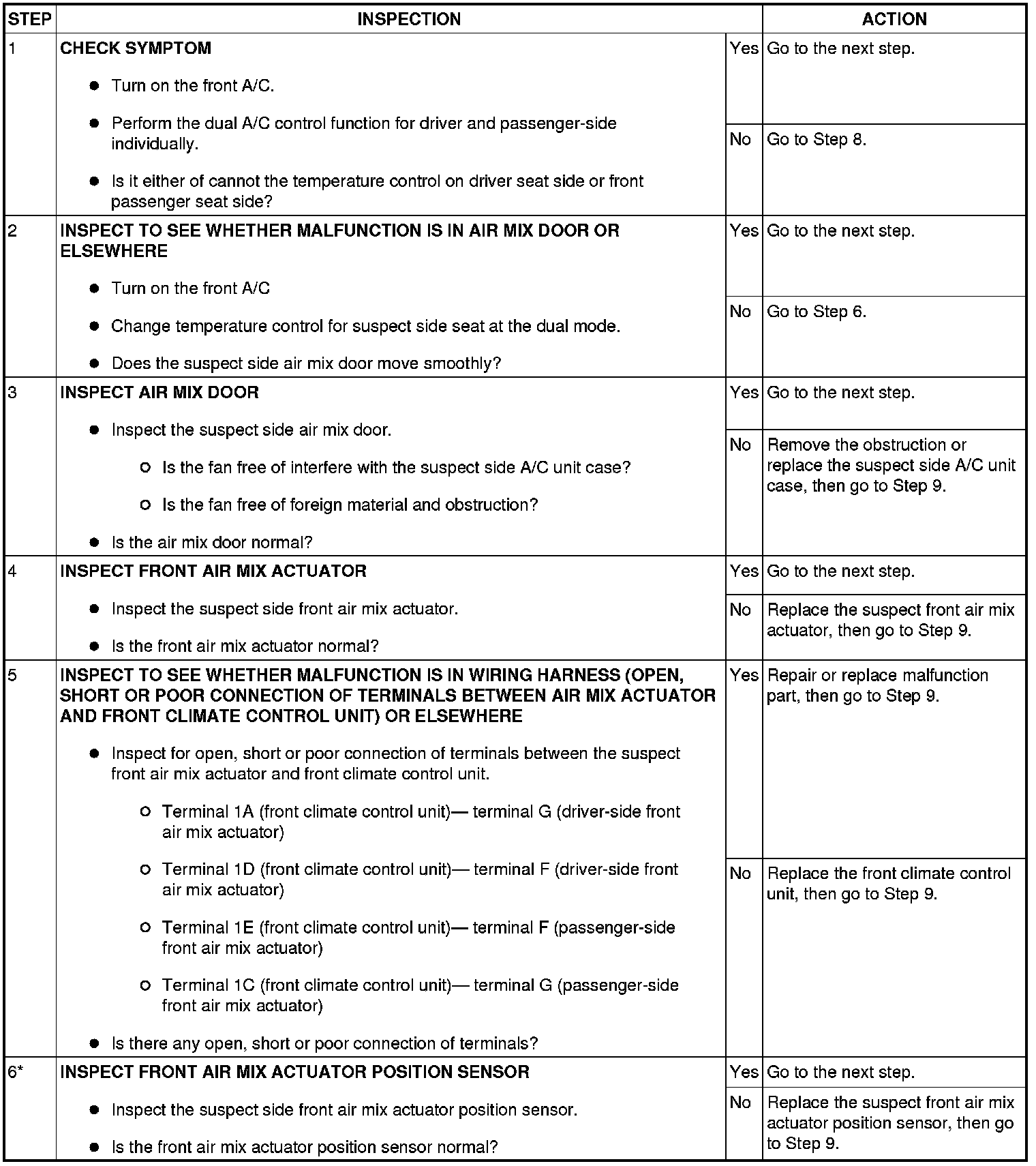

Diagnostic procedure
