Home >> Mazda >> 2012 >> CX-9 FWD V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Description and Operation

Lighting and Horns: Description and Operation

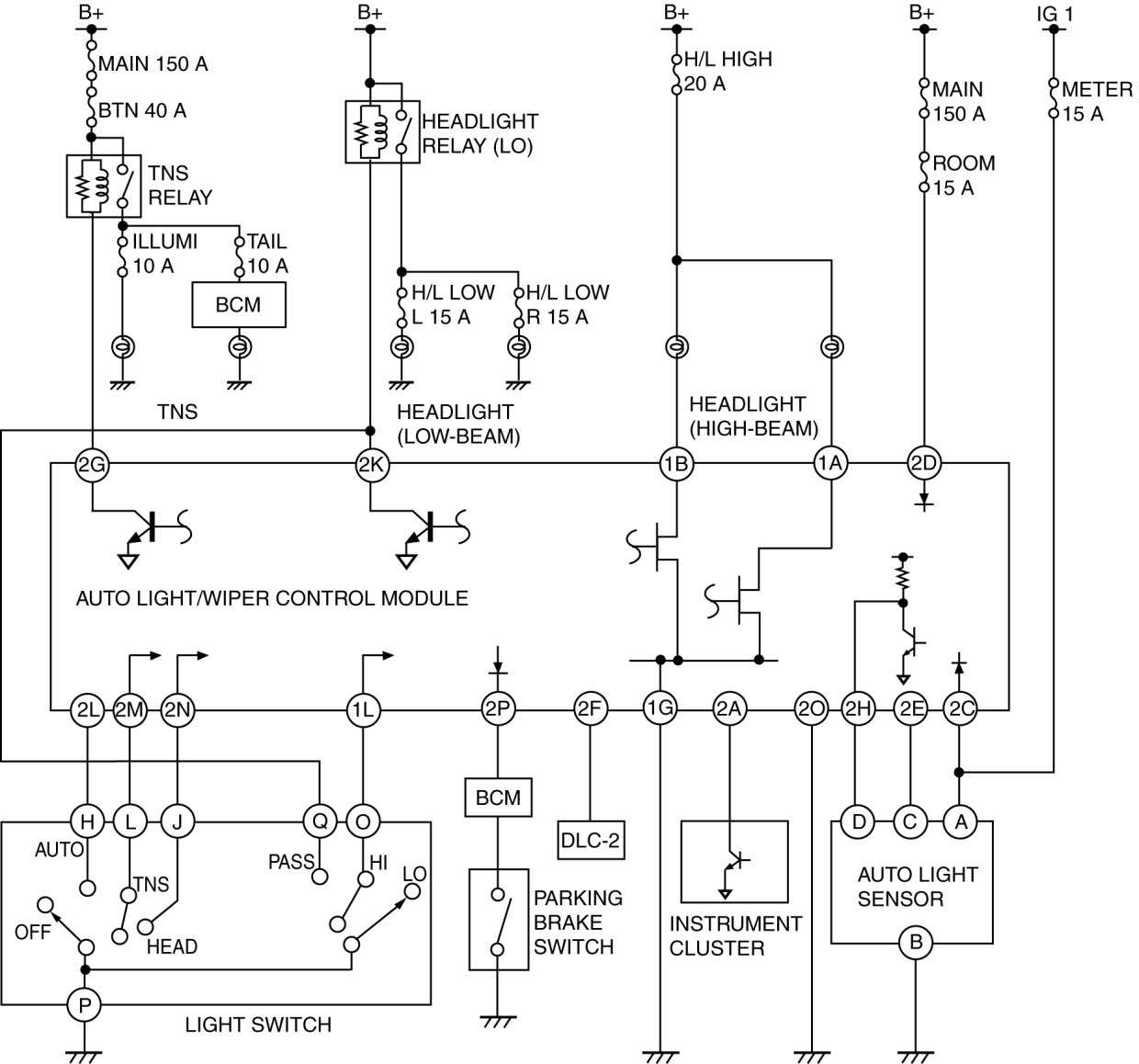

DRL AND AUTO LIGHT-OFF SYSTEM WIRING DIAGRAM
