License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT REMOVAL/INSTALLATION

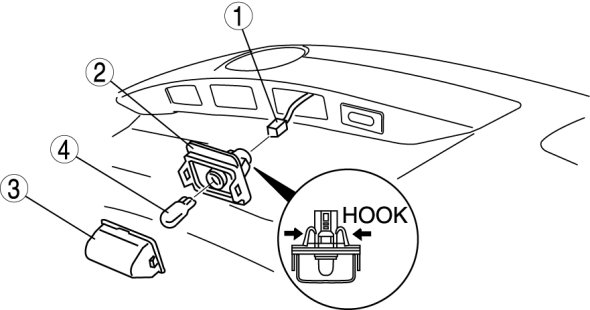

License Plate Light

1. Disconnect the negative battery cable.

2. Remove the liftgate upper trim.

3. Remove the liftgate side trim.

4. Remove the liftgate lower trim.

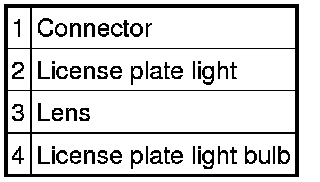

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.

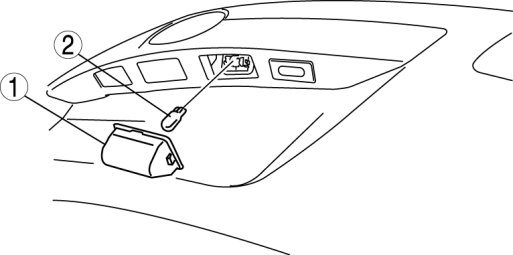

License Plate Light Bulb

1. Disconnect the negative battery cable.

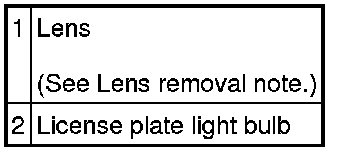

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.

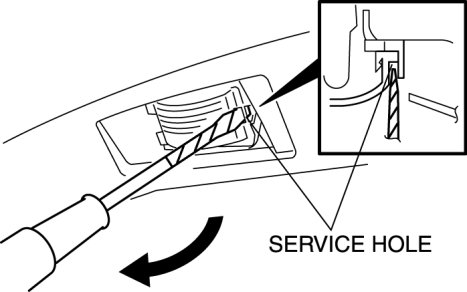

Lens removal note

1. Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.
