Lighting System Personalization Features Setting Procedure

LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

1. Connect the M-MDS (IDS) to DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the IDS.

- Select the "Module Programming".
- Select the "Programmable Parameters".
- Select the "Exterior Lighting".

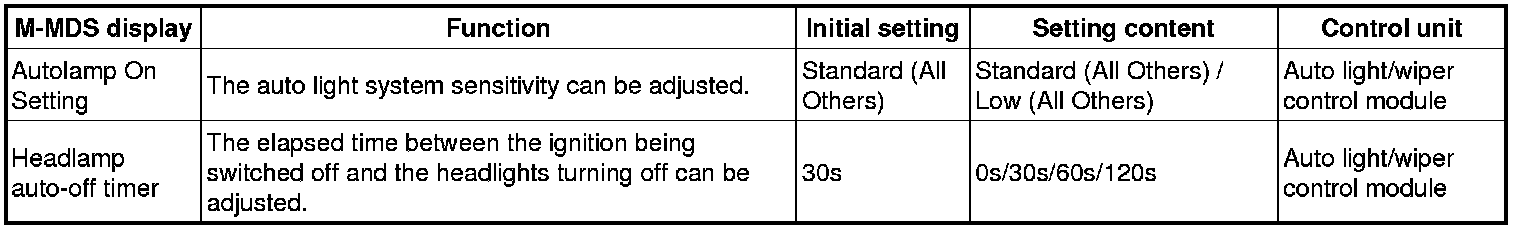

3. Select an item name, and then select option.

CAUTION:
- Do not change personalization features which are not indicated in the appropriate service information.





NOTE:
- If the mode is set to "Low (All Others)", the illumination level for illuminating the TNS and headlights decreases. Therefore, the TNS and headlights illuminate when the ambient light is lower than when the level is set to "Standard (All Others)"
