Pinout Values and Diagnostic Parameters

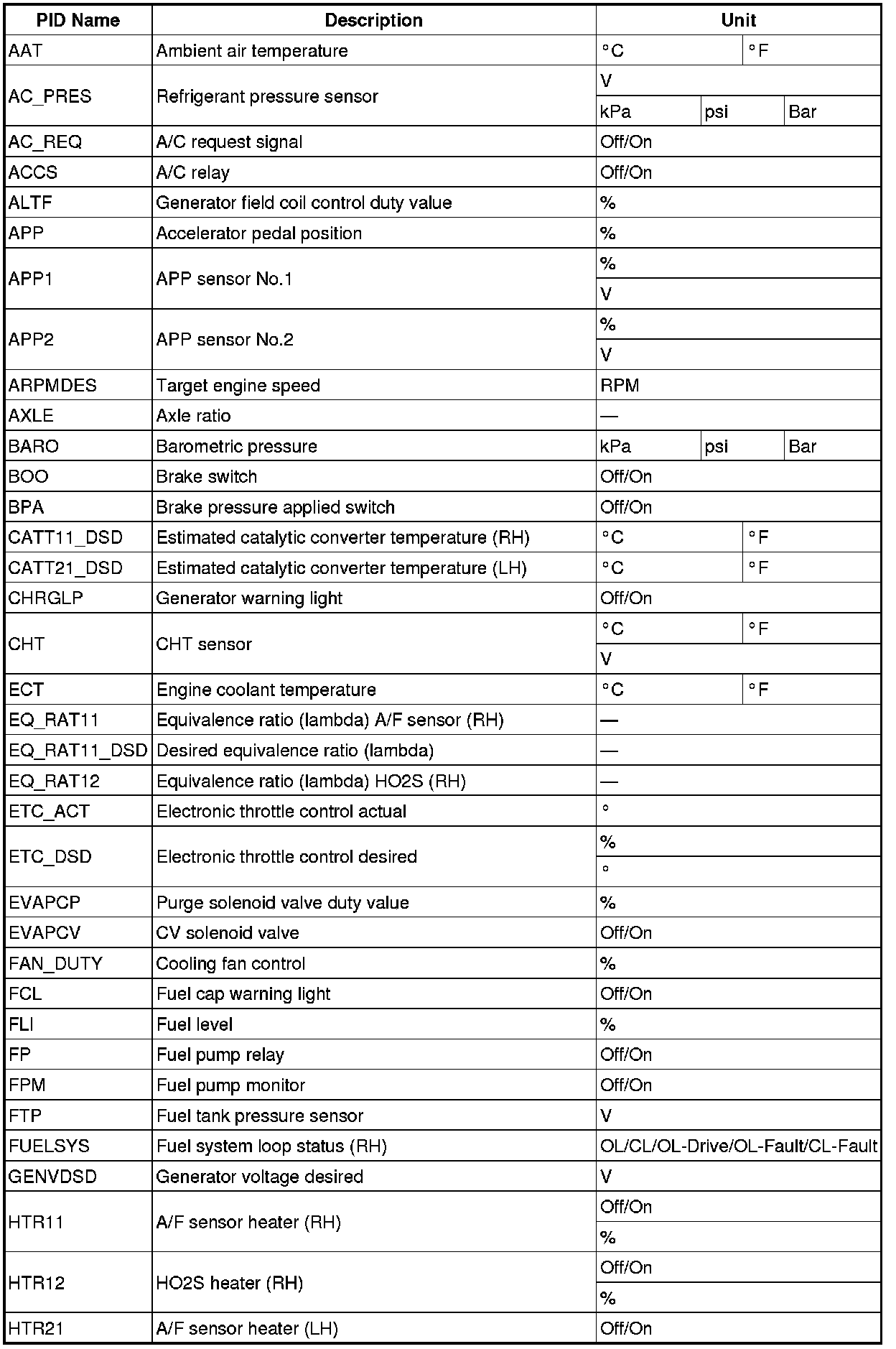

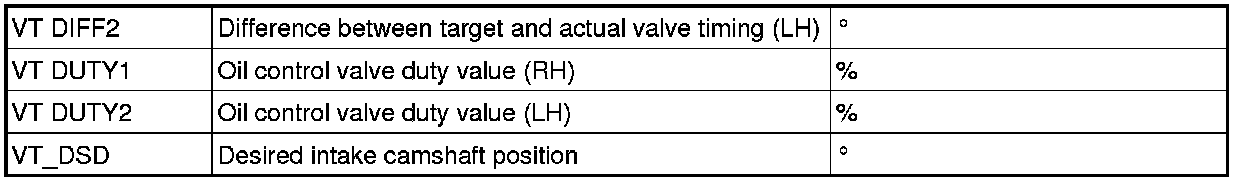

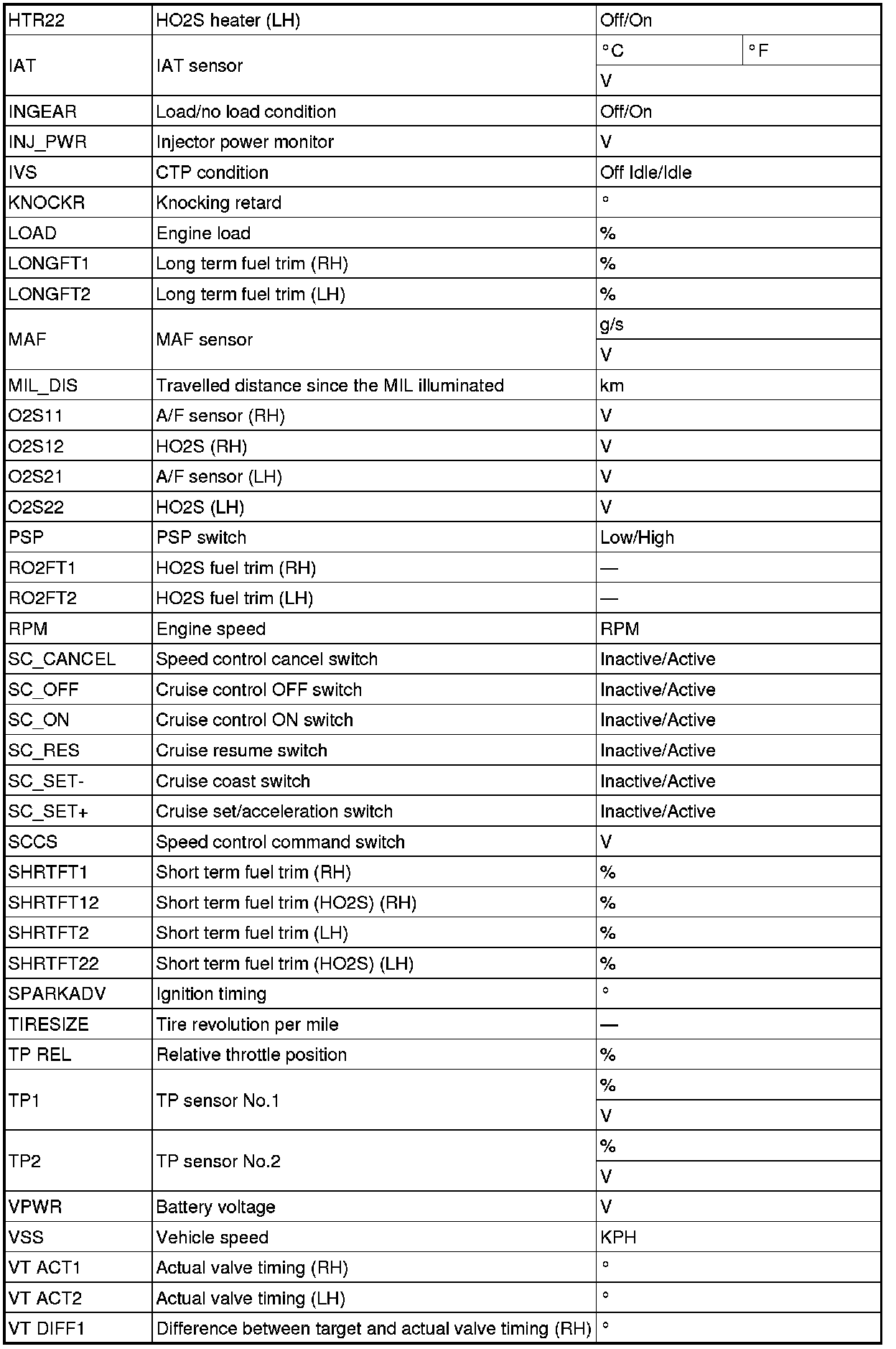

PID/Data Monitor Table
The Mazda Modular Diagnostic System (M-MDS)
