Fuel System Location Index





FUEL SYSTEM LOCATION INDEX [MZI-3.7]

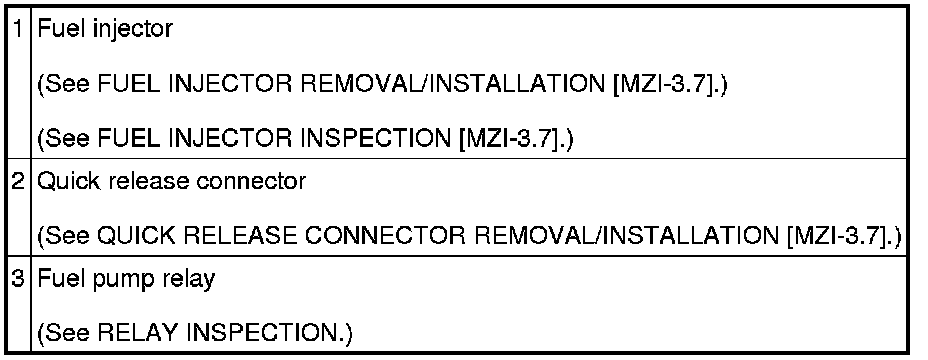

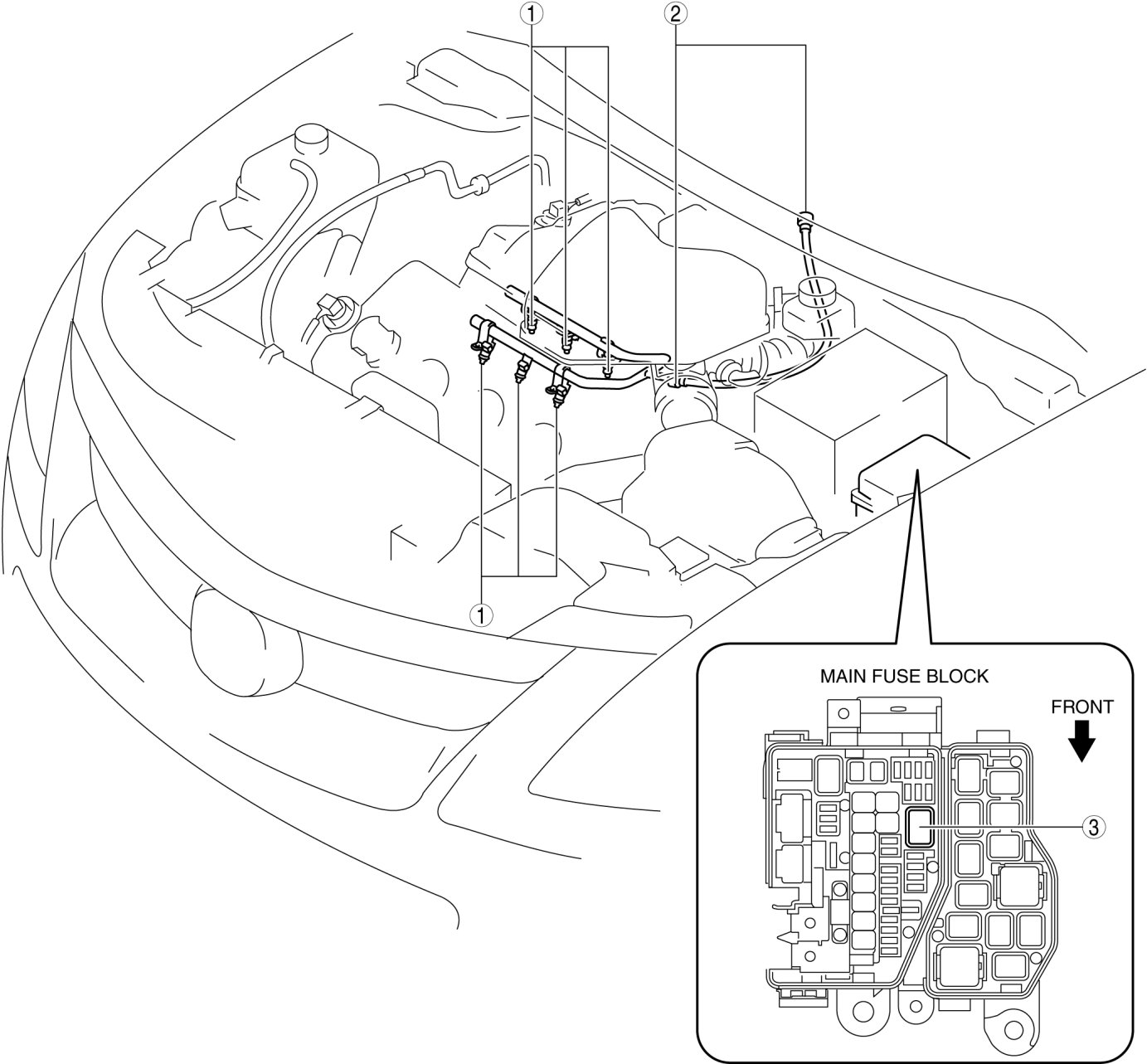

Engine Compartment Side

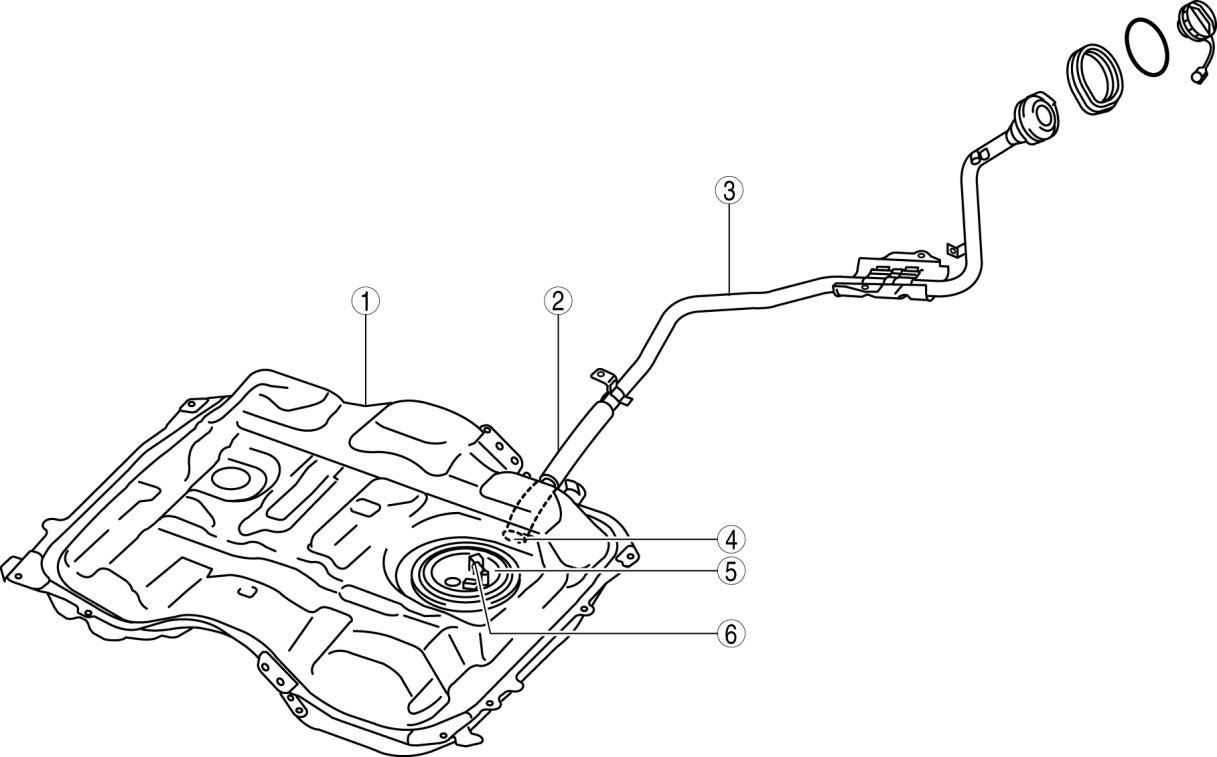

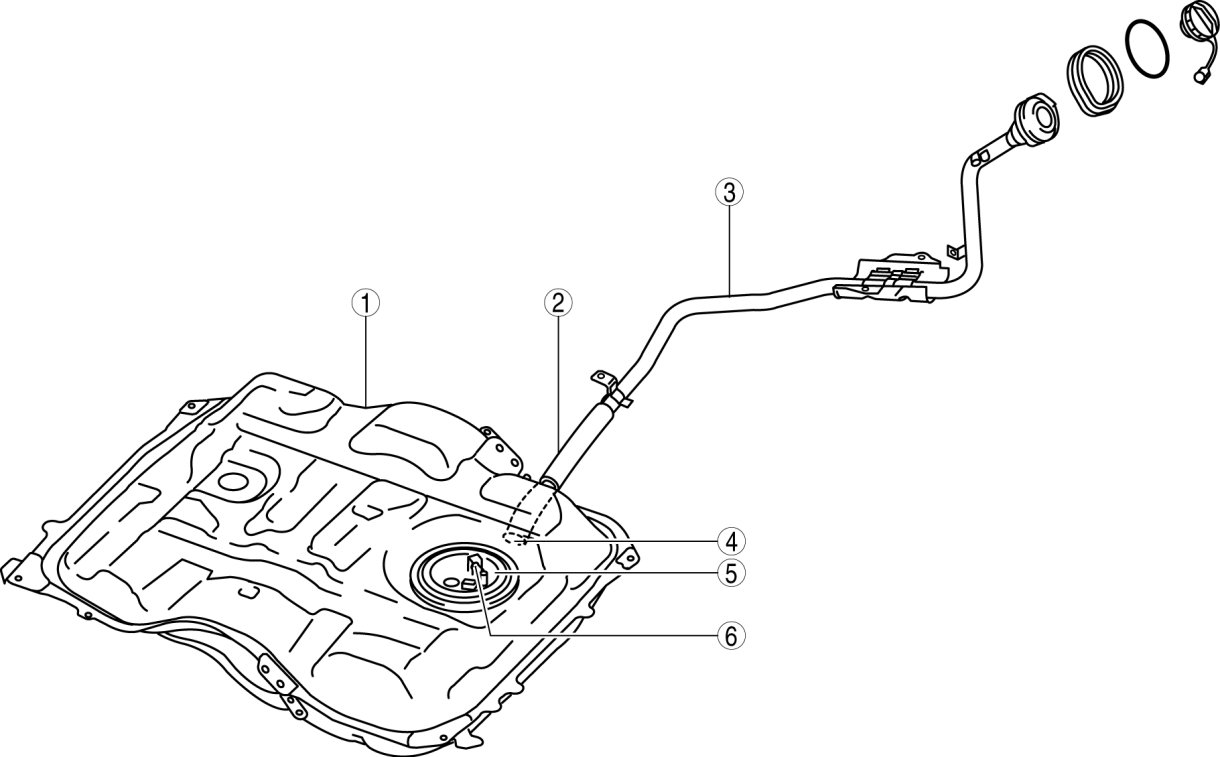

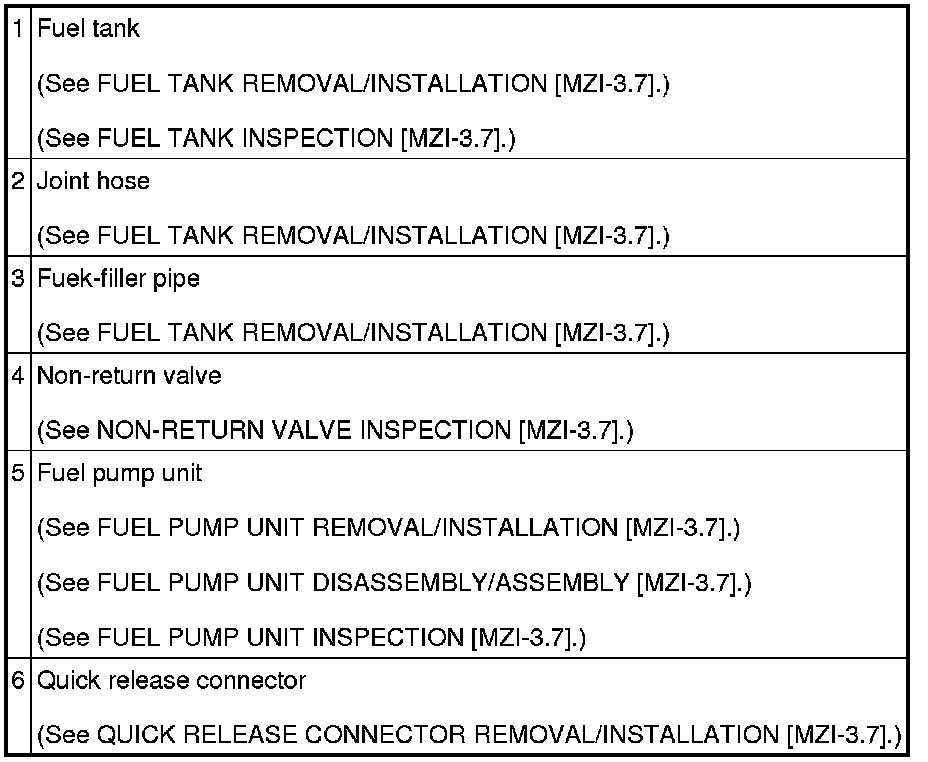

Fuel Tank Side

2WD





AWD
