Ignition Coil: Testing and Inspection

IGNITION COIL INSPECTION [MZI-3.7]

Secondary Coil Resistance Inspection

1. Remove the ignition coils. Service and Repair

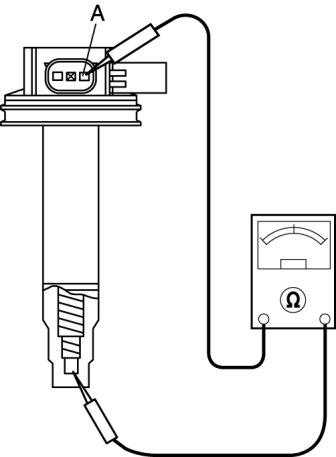

2. Using a tester, measure the resistance between the ignition coil terminal A and ignition coil boot socket.






1 If not within specification, replace the ignition coil.

Ignition coil secondary coil resistance
- 5-6 kohms
