Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Air Bag Control Module
>>
Locations
>>
Component Locations
>>
Two-Step Deployment Control System
Two-Step Deployment Control System

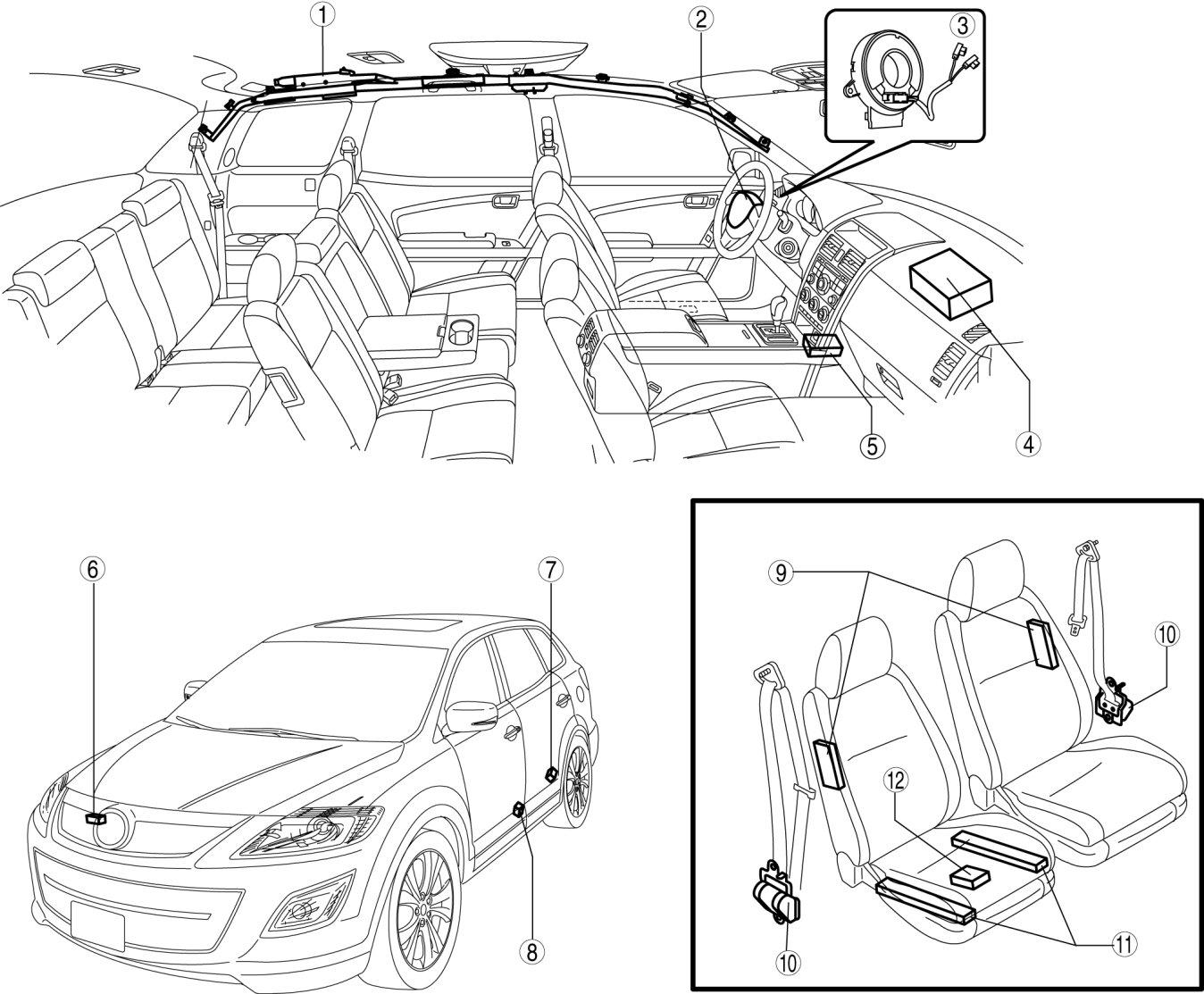

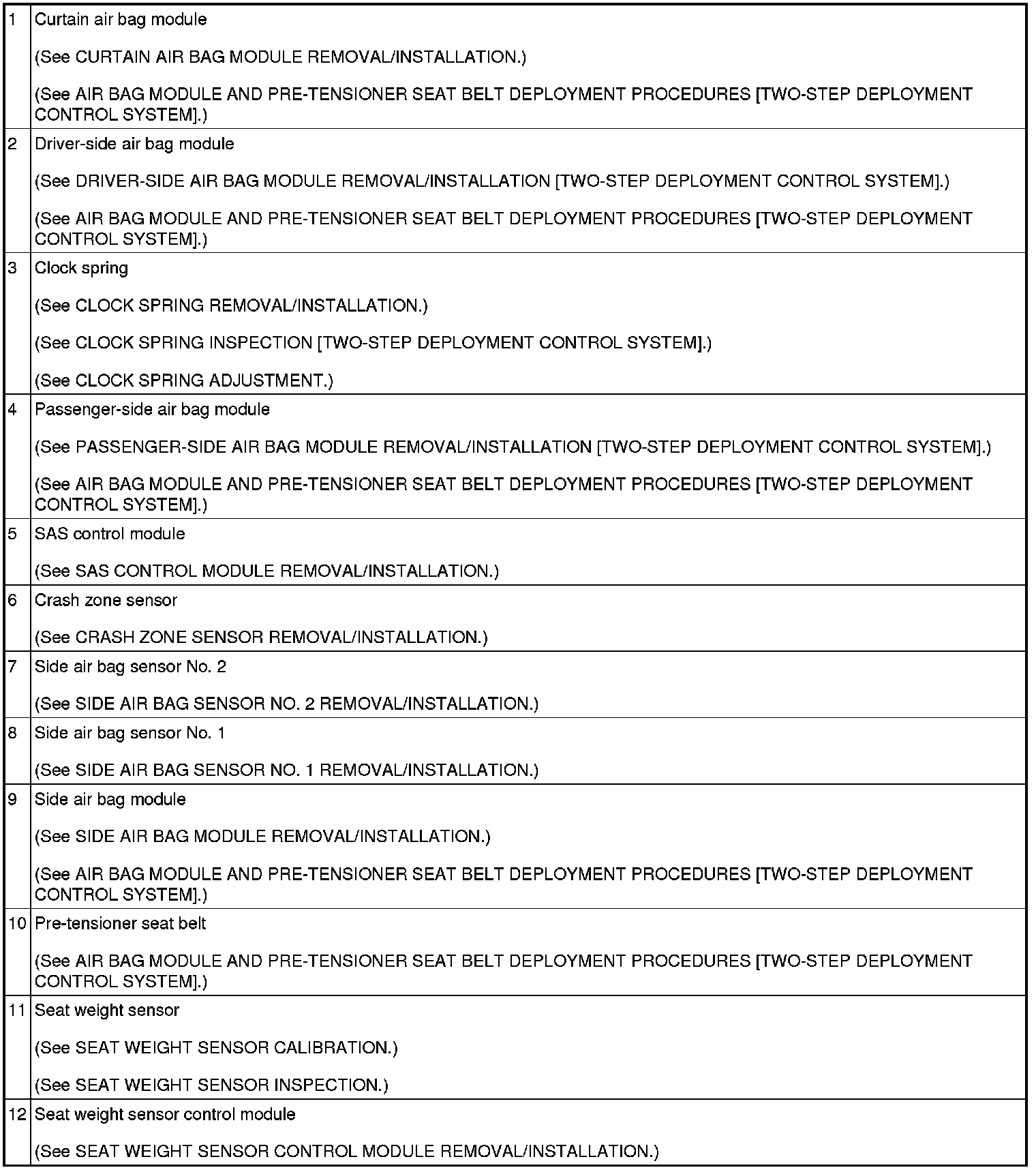

AIR BAG SYSTEM LOCATION INDEX [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
