Standard Deployment Control System
Standard Deployment Control System

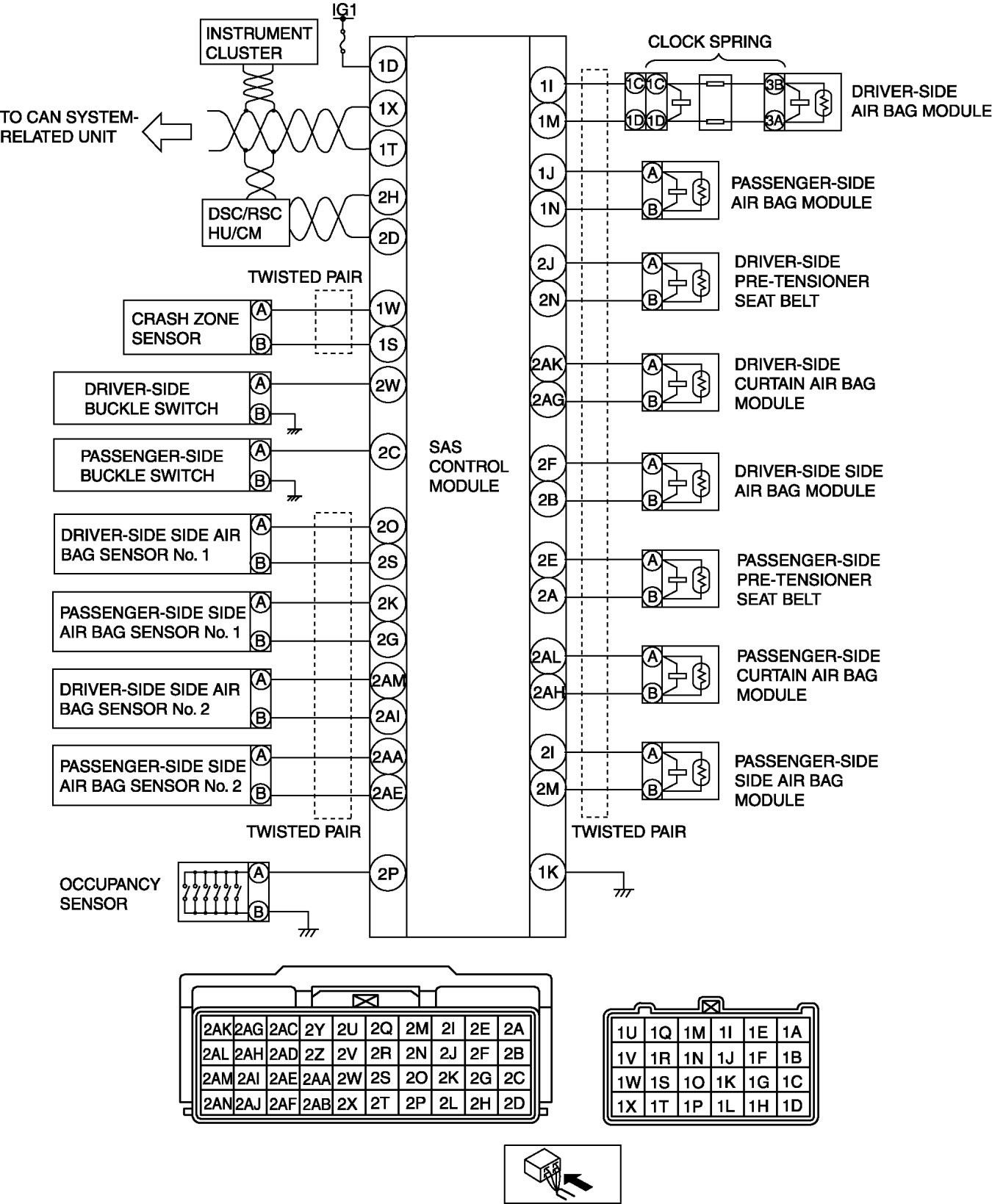

AIR BAG SYSTEM WIRING DIAGRAM (ON-BOARD DIAGNOSTIC) [STANDARD DEPLOYMENT CONTROL SYSTEM]
