Two-Step Deployment Control System
Two-Step Deployment Control System

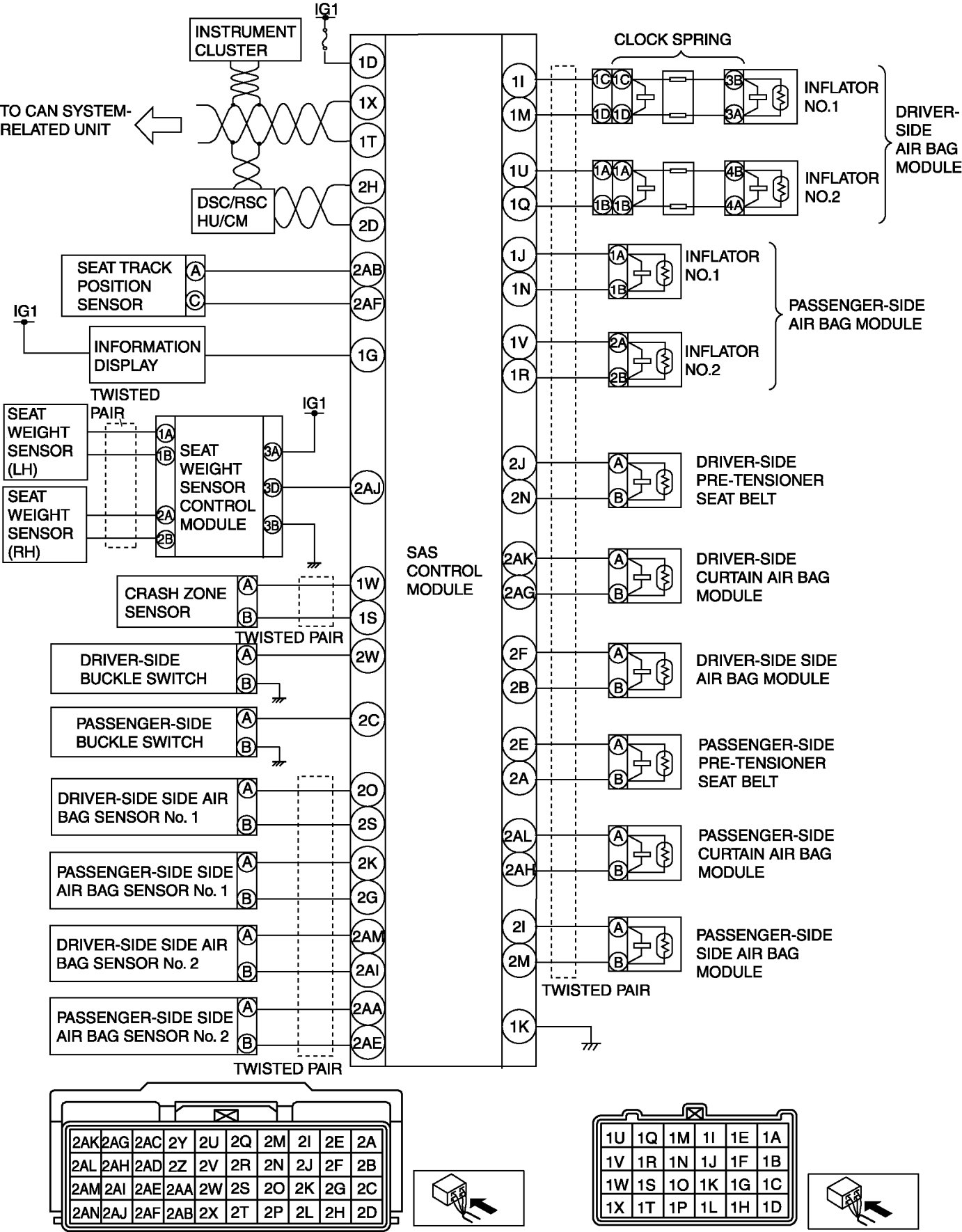

AIR BAG SYSTEM WIRING DIAGRAM (ON-BOARD DIAGNOSTIC) [TWO-STEP DEPLOYMENT CONTROL SYSTEM]
