Home
>>
Mazda
>>
2012
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Standard Deployment Control System
Standard Deployment Control System

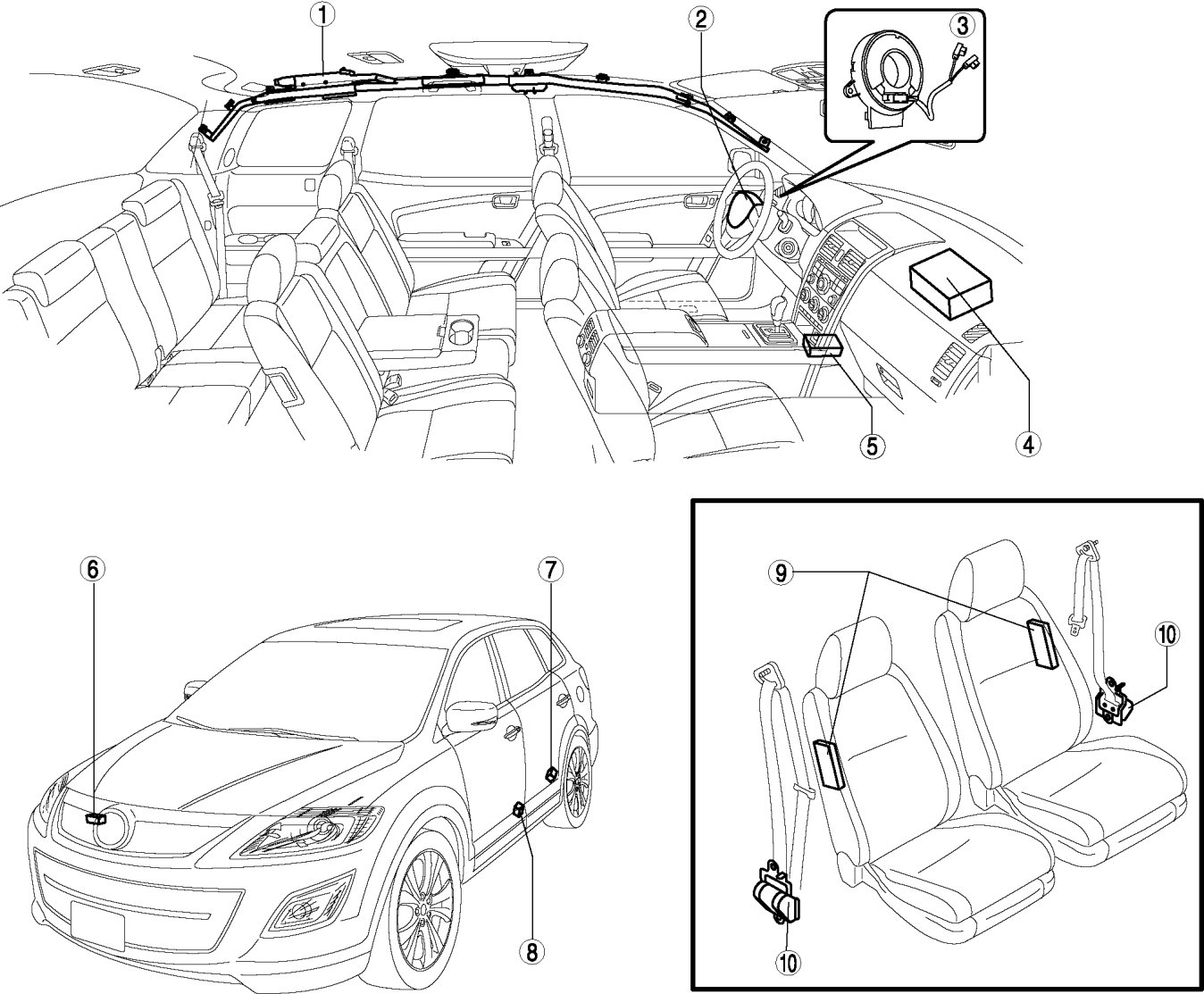

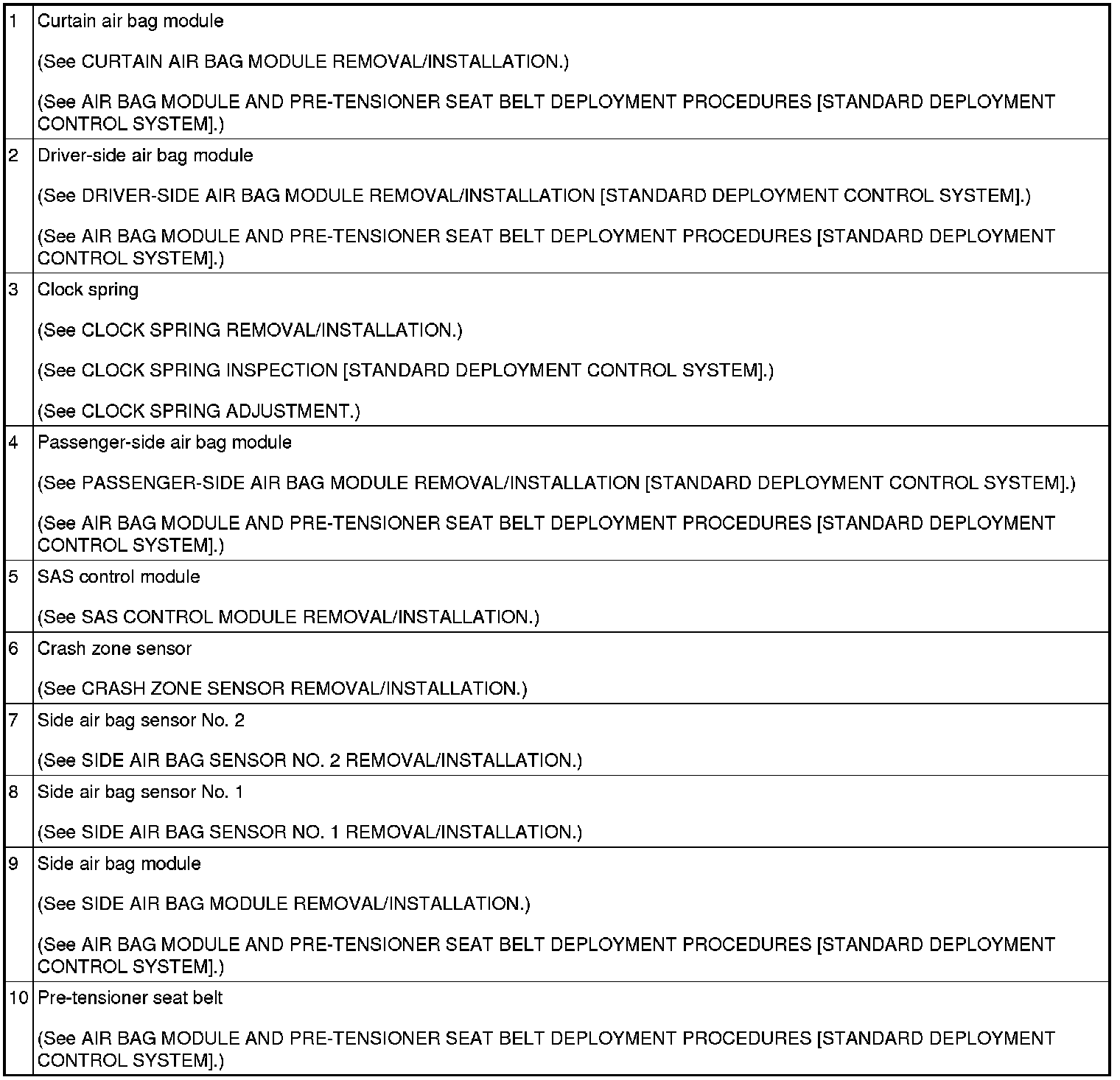

AIR BAG SYSTEM LOCATION INDEX [STANDARD DEPLOYMENT CONTROL SYSTEM]
