Cylinder Head Assembly
Cylinder HeadTighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.

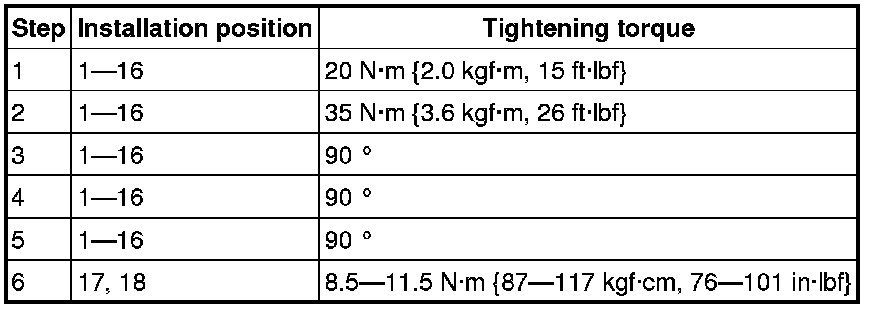

Tightening torque
The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.
Camshaft
Install the RH bank camshaft caps and temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.
Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
Install the LH bank camshaft caps and temporarily tighten the camshaft cap bolts evenly in the order shown in several passes.
Tightening torque 8.5-11.5 Nm {87-117 kgf-cm, 76-101 in-lbf}
Intake Manifold Specifications
Exhaust Manifold Specifications
Camshaft Gear/Sprocket Specifications
