Wheel Bearing





DRIVELINE/AXLE TECHNICAL DATA

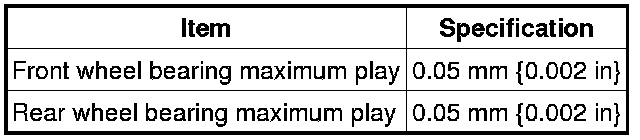

Front and Rear Axle

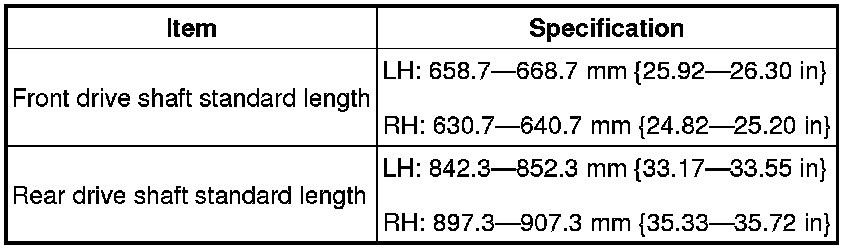

Drive Shaft





Differential

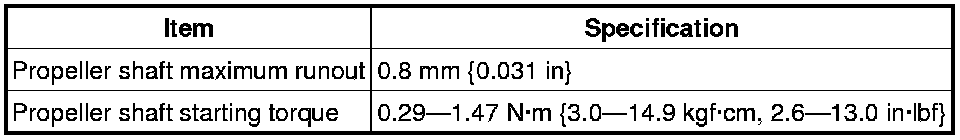

Propeller Shaft
