Automatic Transmission/Transaxle: Tools and Equipment

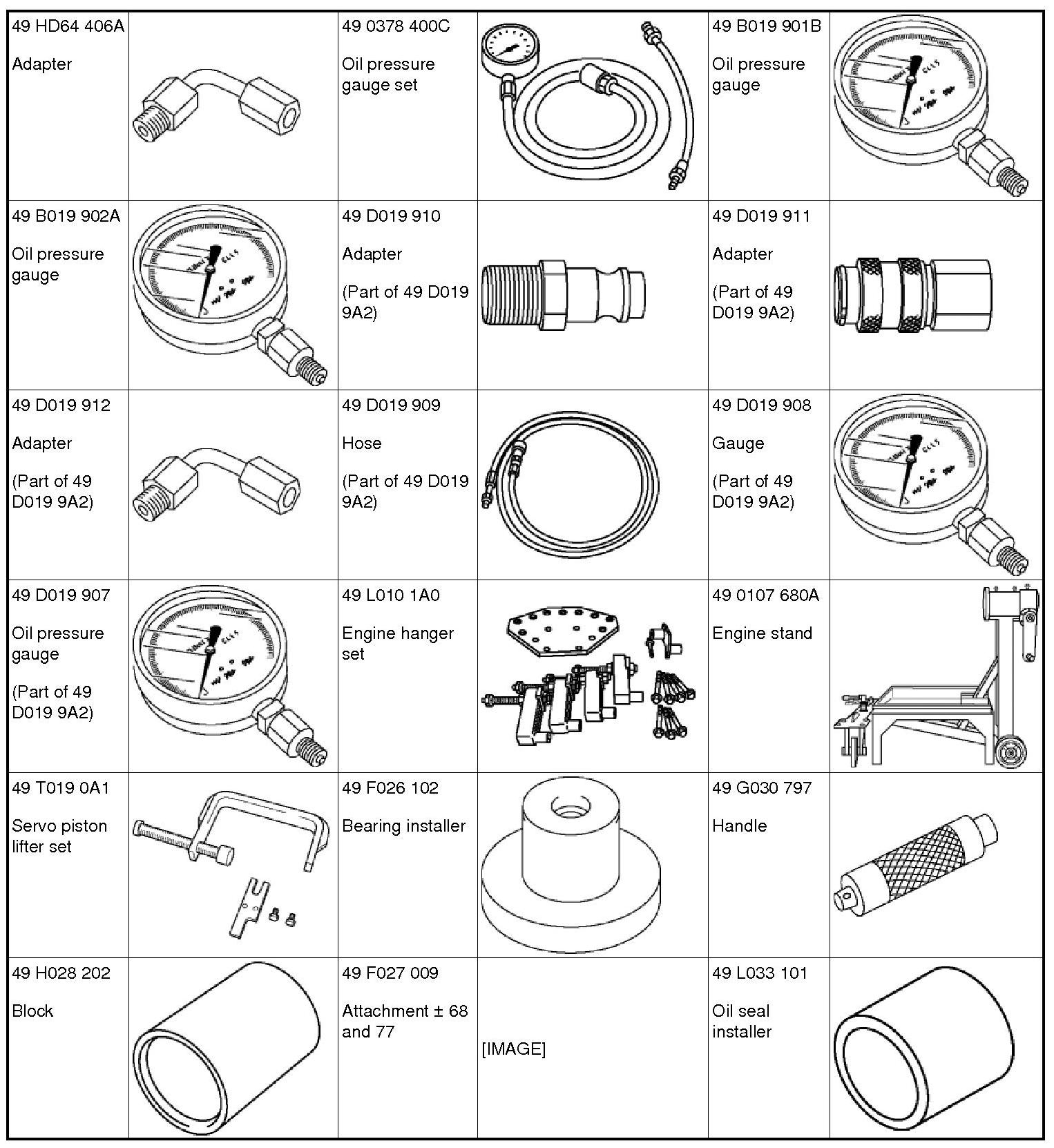

TRANSMISSION/TRANSAXLE SST

Automatic Transaxle [AY6A-EL, AY6AX-EL]
