Front Door Window Motor: Service and Repair

POWER WINDOW MOTOR REMOVAL/INSTALLATION

Front Door

1. Fully lower the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door speaker Front Door Speaker Removal/Installation

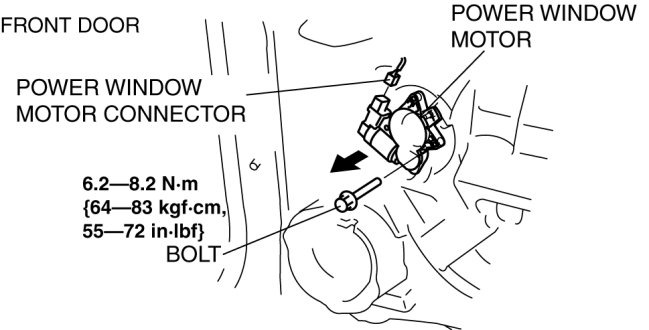

4. Remove the bolts.






5. Remove the power window motor from the power window regulator.

6. Disconnect the power window motor connector.

7. Install in the reverse order of removal.

NOTE:
- When installing the power window motor to the power window regulator drum, the drum housing tabs may detach from the door module panel. If this happens, insert a hand through the speaker installation hole to engage the drum housing tabs, and install the power window motor to the drum while supporting the drum housing.
