Rear Door Window Motor: Testing and Inspection

POWER WINDOW MOTOR INSPECTION

Rear Side

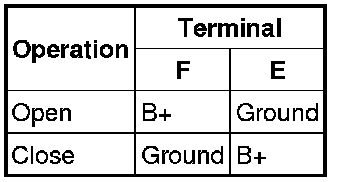

1. Apply battery positive voltage and connect the ground to the power window motor terminals, and then inspect the power window motor operation.






- If the power window motor does not operate as indicated in the table, replace it.

CAUTION:
- If the power window motor temperature is high, the motor may not rotate due to the motor internal bimetal function. Leave it untouched for about 3 min to cool it down, then reinspect.
