Radiator Support: Service and Repair

SHROUD SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

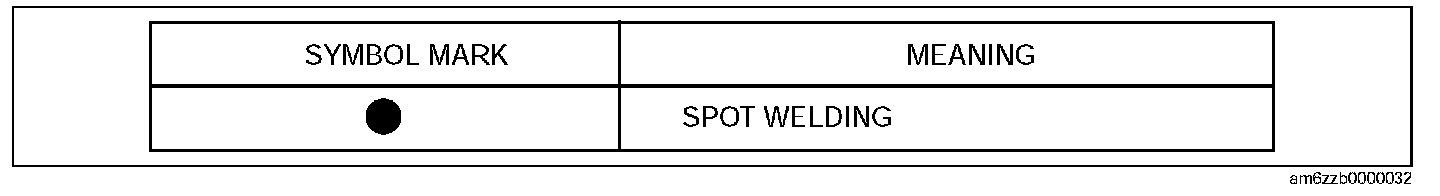

Symbol Mark







Removal Procedure

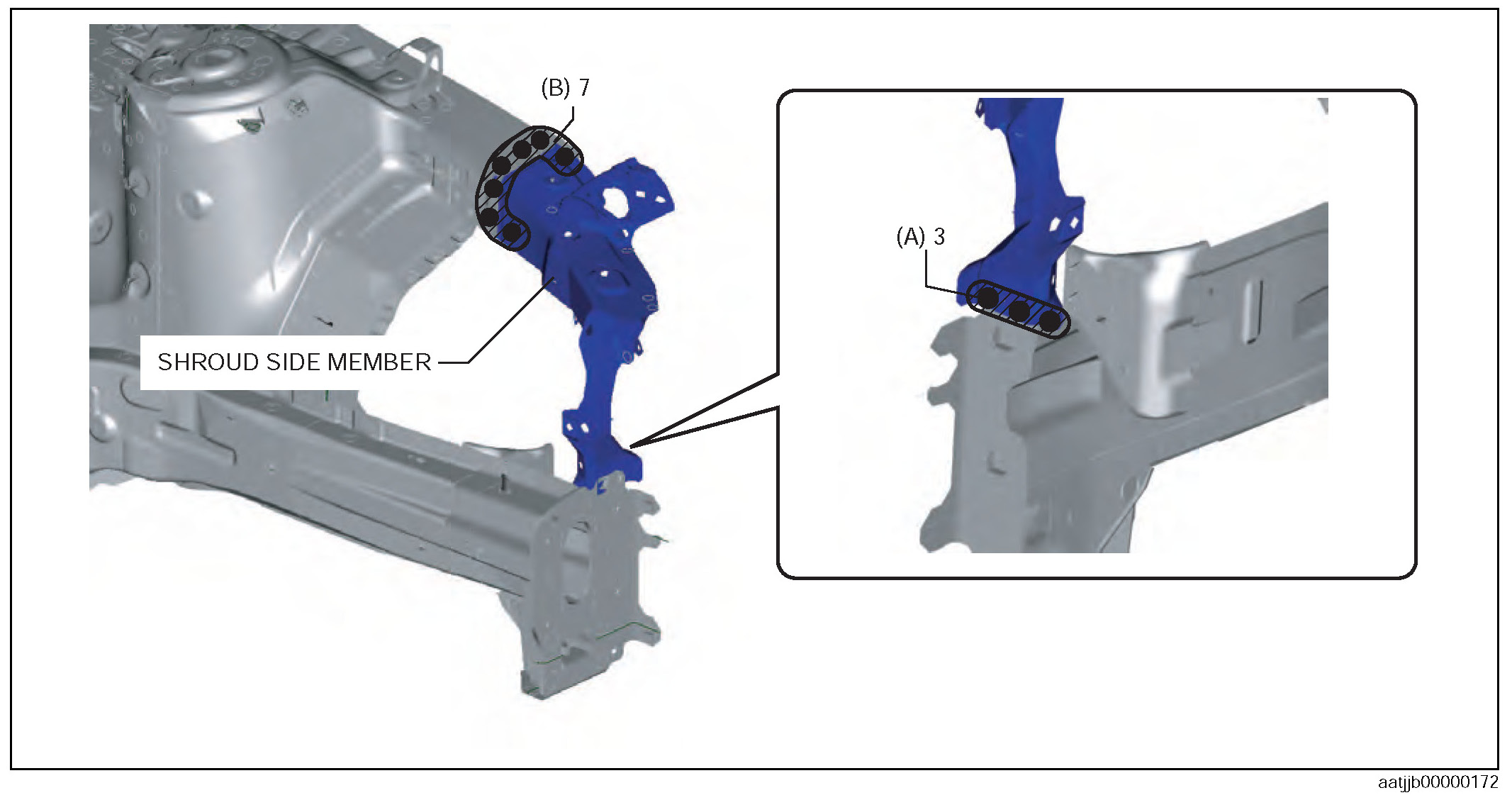

1. Drill the 3 locations indicated by (A) shown in the figure.







2. Drill the 7 locations indicated by (B) shown in the figure.
3. Remove the shroud side member.

SHROUD SIDE MEMBER INSTALLATION [PANEL REPLACEMENT]

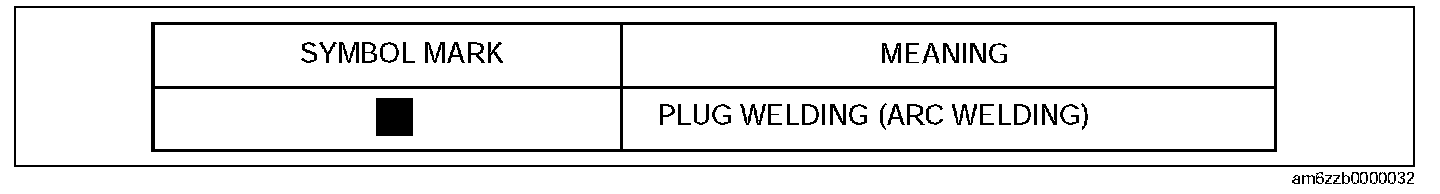

Symbol Mark







Installation Procedure

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

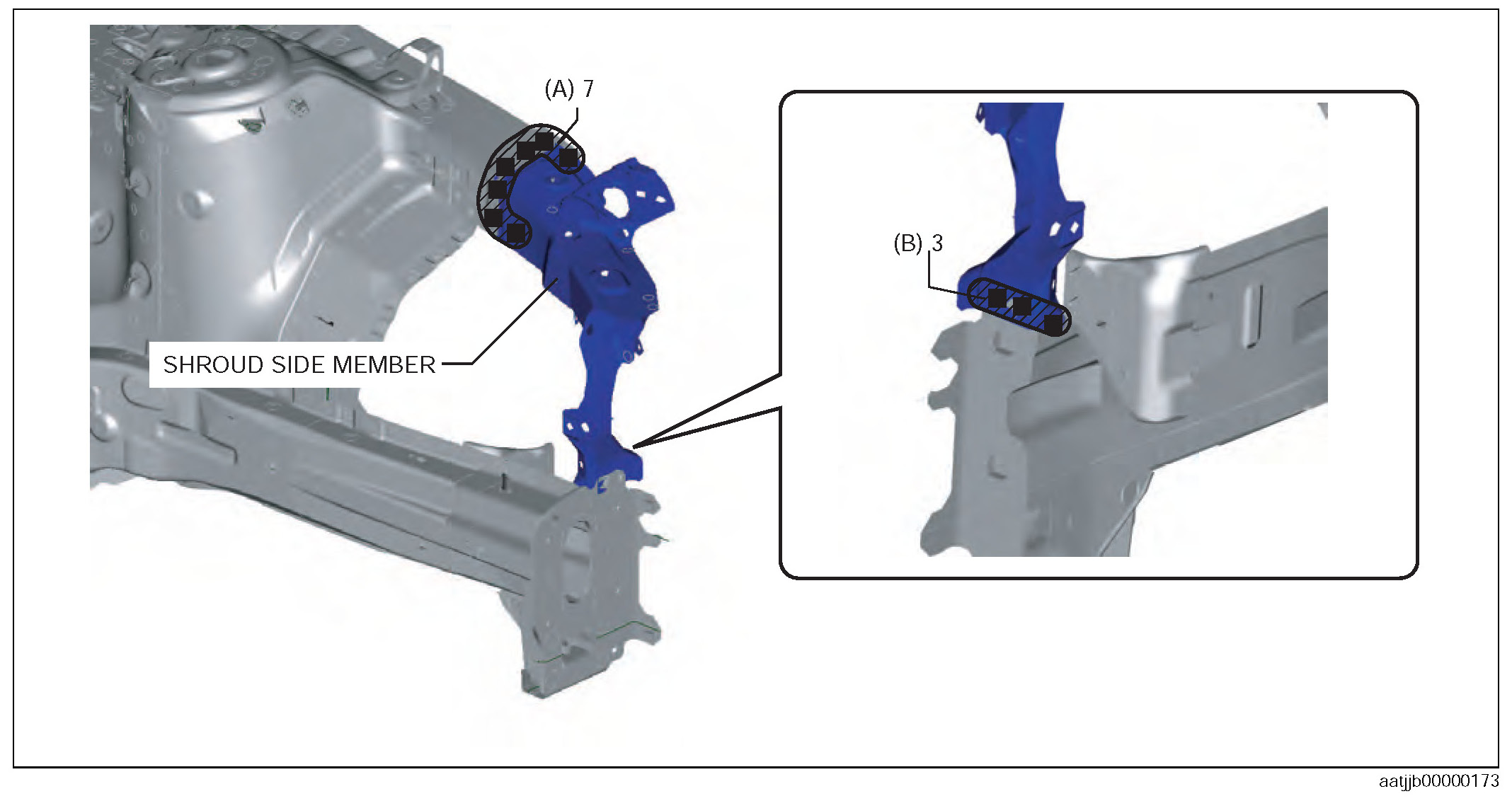

4. Plug weld the 7 locations indicated by (A) shown in the figure.







5. Plug weld the 3 locations indicated by (B) shown in the figure, then install the shroud side member.
