DTC P0223

Accelerator pedal position (APP) sensor No.2 circuit high input
DETECTION CONDITION
•  The PCM monitors the input signal from APP sensor No.2. If the voltage from APP sensor No.2 is more than 4.80 V for 0.5 s when the APP sensor no.2 power supply voltage is normal, the PCM determines that there is a malfunction in the APP sensor No.2 circuit.
POSSIBLE CAUSE
•  Connector or terminal malfunction
•  Short to power supply in wiring harness between APP sensor No.2 terminal C and PCM terminal 209
•  APP sensor No.2 malfunction
•  Open circuit in wiring harness between APP sensor No.2 terminal D and PCM terminal 212
•  PCM malfunction

Diagnostic procedure

STEP

INSPECTION

ACTION
1
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
•  Has FREEZE FRAME DATA been recorded?
Yes
Go to the next step.
No
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2
VERIFY RELATED SERVICE INFORMATION
•  Verify related Service Information availability.
•  Is any related Service Information available?
Yes
Perform repair or diagnosis according to available Service Information.
•  If vehicle is not repaired, go to the next step.
No
Go to the next step.
3
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
•  Connect the M-MDS to the DLC-2.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Go to the next step.
No
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
(See INTERMITTENT CONCERN TROUBLESHOOTING [WL-C, WE-C].)
4
INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the APP sensor connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
5

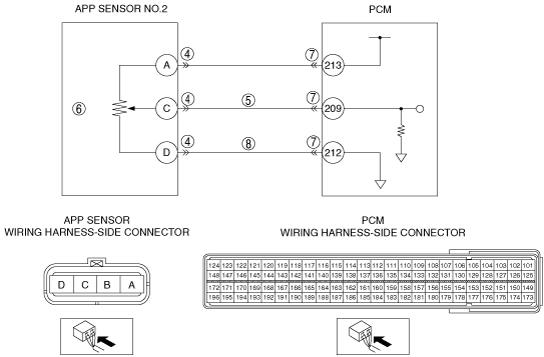

INSPECT APP SENSOR NO.2 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
•  Turn the engine switch to the ON position (Engine off).
•  Measure the voltage between APP sensor No.2 terminal C (wiring harness-side) and body ground.
•  Is the voltage more than 4.80 V?
Yes
Repair or replace the wiring harness for a possible short to power supply, then go to Step 9.
No
Go to the next step.
6
INSPECT APP SENSOR NO.2
•  Inspect the APP sensor No.2.
•  Is there any malfunction?
Yes
Replace the APP sensor, then go to Step 9.
(See ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-C, WE-C].)
No
Go to the next step.
7
INSPECT PCM CONNECTOR FOR POOR CONNECTION
•  Turn the engine switch off.
•  Disconnect the PCM connector.
•  Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
•  Is there any malfunction?
Yes
Repair or replace the terminal, then go to Step 9.
No
Go to the next step.
8
INSPECT APP SENSOR NO.2 GROUND CIRCUIT FOR OPEN CIRCUIT
•  Turn the engine switch off.
•  Inspect for continuity between APP sensor No.2 terminal D (wiring harness-side) and PCM terminal 212 (wiring harness-side).
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for a possible open circuit, then go to the next step.
9
VERIFY TROUBLESHOOTING OF DTC P0223 COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Clear the DTC from the PCM memory using the M-MDS.
•  Start the engine.
•  Is the same DTC present?
Yes
Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [WL-C, WE-C]
.)
No
Go to the next step.
10
VERIFY AFTER REPAIR PROCEDURE
•  Perform the Repair Verification Drive Mode.
•  Are any DTCs present?
Yes
Go to the applicable DTC inspection.
(See DTC TABLE [WL-C, WE-C].)
No
DTC troubleshooting completed.
