ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-C, WE-C]


id0113b6807300


R.H.D.

1.  Disconnect the negative battery cable.

2.  Set the power brake unit slightly out of the way. (MT) (See POWER BRAKE UNIT REMOVAL/INSTALLATION.)

3.  Set the clutch master cylinder slightly out of the way. (MT) (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION.)

4.  Remove the column cover and steering shaft. (MT) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

5.  Remove the 4x4 control module. (4x4, AT)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

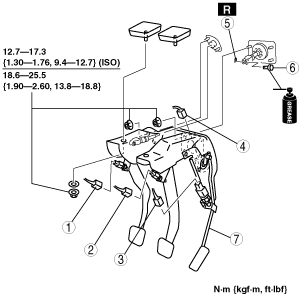

MT

absggw00002393

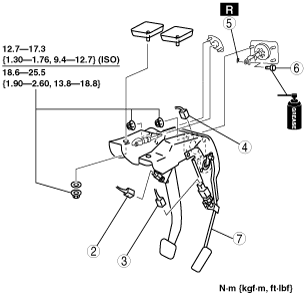

AT

absggw00002394

1
Neutral switch connector
2
Brake switch connector
3
Idle switch connector
4
APP sensor connector
5
Spring pin
6
Clevis pin
7
Accelerator pedal component


L.H.D.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

abs0zw00000369

1
Idle switch connector
2
APP sensor connector
3
Accelerator pedal component


Accelerator Pedal Component Installation Note

•  Carry out the “BRAKE PEDAL INSPECTION” procedure after installing the pedal component. (See BRAKE SWITCH INSPECTION.)
•  Carry out the “CLUTCH PEDAL INSPECTION/ADJUSTMENT” procedure after installing the pedal component. (See CLUTCH PEDAL INSPECTION/ADJUSTMENT.)
