FRONT OIL SEAL REPLACEMENT [G6]

id011095800800

1. Disconnect the negative battery cable.

2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [G6].)

3. Remove the drive belt. (See DRIVE BELT ADJUSTMENT [G6].)

4. Remove the cooling fan and water pump pulley. (See COOLING FAN REMOVAL/INSTALLATION [G6].)

5. Remove the radiator cowling. (See RADIATOR REMOVAL/INSTALLATION [G6].)

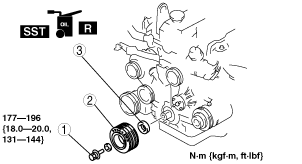

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

abs0zw00000213

Front Oil Seal Removal Note

1. Cut the oil seal lip using a razor knife.

2. Remove the oil seal using a screwdriver protected with a rag.

absggw00000079

Front Oil Seal Installation Note

1. Apply clean engine oil to the oil seal lip

2. Push the oil seal slightly in by hand.

3. Tap the oil seal in evenly using the SST and a hammer.

abs0zw00000089

Front oil seal press-in amount

0—0.7 mm {0—0.027 in}

1	Pulley lock bolt (See TIMING CHAIN REMOVAL/INSTALLATION [G6].)
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note.) (See Front Oil Seal Installation Note.)
