REAR DIFFERENTIAL DISASSEMBLY [LSD (LIMITED SLIP DIFFERENTIAL)]

id0314008005a2

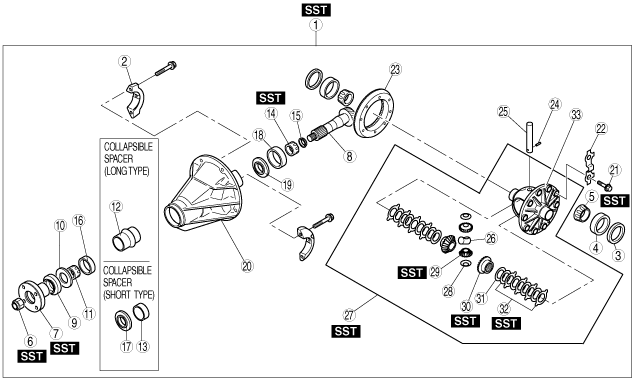

1.  Disassemble in the order indicated in the table.

abs0zw00000390

1	Differential component (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
2	Bearing cap (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
3	Adjusting shim
4	Side bearing outer race
5	Side bearing inner race (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
6	Locknut (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
7	Companion flange (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
8	Drive pinion (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
9	Oil seal (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
10	Thrust washer (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
11	Front bearing inner race
12	Collapsible spacer (long type)
13	Collapsible spacer (short type)
14	Rear bearing inner race (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
15	Adjusting shim
16	Front bearing outer race (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
17	Front oil baffle
18	Rear bearing outer race (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
19	Rear oil baffle (if equipped)
20	Differential carrier
21	Bolt
22	Lock plate (if equipped)
23	Ring gear
24	Knock pin (See REAR DIFFERENTIAL DISASSEMBLY [STANDARD DIFFERENTIAL].)
25	Pinion shaft
26	Thrust block
27	Limited slip differential component (See Limited Slip Differential Component Disassembly Note.)
28	Pinion gear thrust washer
29	Pinion gear
30	Side gear
31	Side gear thrust washer
32	LSD clutches
33	Differential case

Limited Slip Differential Component Disassembly Note

1.  Place one of the axle shafts, which was removed from the component, into a vise, with the splines extending above the jaws of the vise far enough to component. Position the differential case onto the axle shaft as a holding fixture by aligning the splines of the side gear with those of the axle shaft.

absggw00001697

2.  Install the SST into the bottom of the side gear, and apply grease to the centering hole of it.

absggw00001698

3.  Install the SSTs into the differential case.

absggw00001699

4.  Tighten the SSTs to move the side gears away from the pinion gears and relieve the normal loaded condition.

absggw00001700

5.  Push out the thrust washers located behind the pinion gears.

6.  Momentarily loosen the SST. Retighten the SST until a very slight movement of the pinion gears is seen.

7.  Insert SST into the bore of the pinion shaft and rotate the differential case until the pinion gears can be removed through the large openings in the differential case.

absggw00001701

8.  Retain the top side gear and clutch pack in the differential case by hand and remove the SSTs.

absggw00001702

9.  Remove the top side gear and clutch pack. Keep the stack of the clutch plates and clutch discs in exact order.

10.  Remove the retainer clips from both clutch packs to allow separation of the clutch discs and clutch plates for cleaning and inspection.
