CONVENTIONAL BRAKE SYSTEM LOCATION INDEX

id041100800100

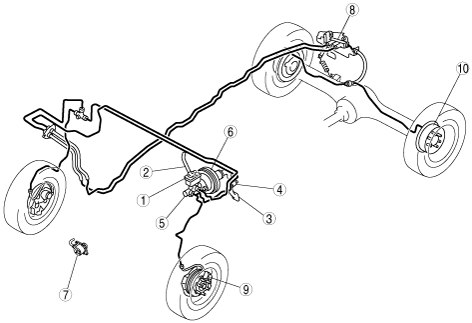

L.H.D.

arnffw00000327

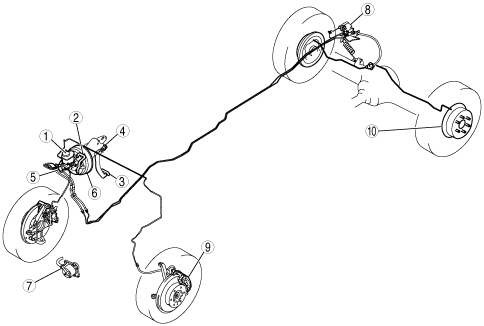

R.H.D.

arnffw00000328

1	Brake fluid (See AIR BLEEDING.)
2	Vacuum line (See VACUUM LINE INSPECTION.)
3	Brake pedal (See BRAKE PEDAL INSPECTION.) (See BRAKE PEDAL REMOVAL/INSTALLATION [MT].) (See BRAKE PEDAL REMOVAL/INSTALLATION [AT].)
4	Brake switch (See BRAKE SWITCH REMOVAL/INSTALLATION.) (See BRAKE SWITCH INSPECTION.)
5	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [MT].) (See MASTER CYLINDER REMOVAL/INSTALLATION [AT].) (See BRAKE FLUID LEVEL SENSOR INSPECTION.) (See MASTER CYLINDER DISASSEMBLY/ASSEMBLY.)
6	Power brake unit (See POWER BRAKE UNIT INSPECTION.) (See POWER BRAKE UNIT REMOVAL/INSTALLATION.)
7	Vacuum pump (WLT-1, WLT-2, WL-C, WE-C) (See VACUUM PUMP INSPECTION.) (See VACUUM PUMP REMOVAL/INSTALLATION.)
8	Load sensing proportioning valve (LSPV) (See LOAD SENSING PROPORTIONING VALVE (LSPV) INSPECTION.) (See LOAD SENSING PROPORTIONING VALVE (LSPV) ADJUSTMENT.) (See LOAD SENSING PROPORTIONING VALVE (LSPV) REMOVAL/INSTALLATION.)
9	Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION.) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4X2 (HIGH CLEARANCE MODEL), 4x4].) (See DISC PAD (FRONT) REPLACEMENT [4x2 (EXCEPT HIGH CLEARANCE MODEL)].) (See DISC PAD (FRONT) REPLACEMENT [4X2 (HIGH CLEARANCE MODEL), 4x4].) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY [4x2 (EXCEPT HIGH CLEARANCE MODEL)].) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY [4X2 (HIGH CLEARANCE MODEL), 4x4].)
10	Rear brake (drum) (See REAR BRAKE (DRUM) INSPECTION.) (See REAR BRAKE (DRUM) REMOVAL/INSTALLATION.) (See WHEEL CYLINDER DISASSEMBLY/ASSEMBLY.)
