BONNET ADJUSTMENT

id091000802400

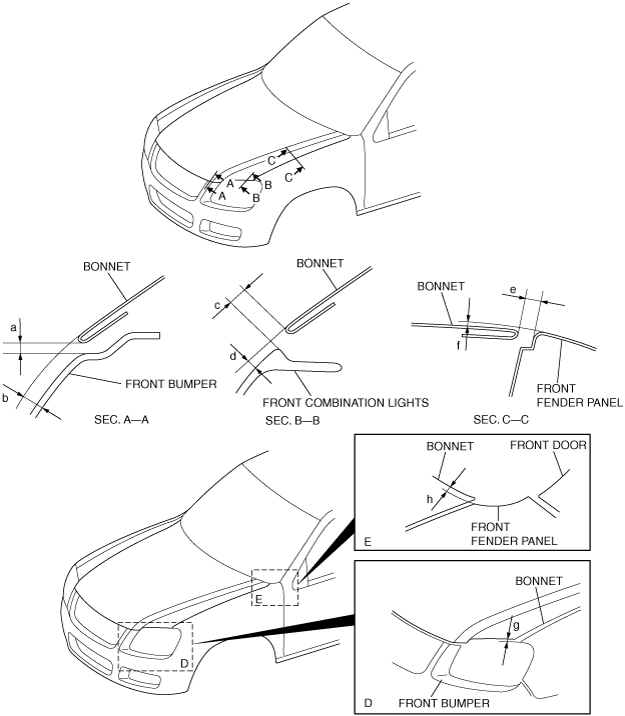

1. Measure the gap and height between the bonnet and the body.

clearance

a: 4.7―7.4 mm {0.16—0.29 in}

b: -1.2―4.2 mm {-0.05—0.16 in}

c: 2.3―6.7 mm {0.09—0.26 in}

d: -1.6―1.6 mm {-0.06—0.06 in}

e: 2.7―5.3 mm {0.11—0.20 in}

f: -0.5―2.1 mm {-0.02—0.08 in}

g: -0.9―2.1 mm {0.04—0.08 in}

h: 0.0―1.5 mm {0.00—0.06 in}

abs0zw00000272

2. If not as specified, adjust the gap and height.

Gap Adjustment

1. Loosen the bonnet installation bolts and reposition the bonnet.

abs0zw00000273

2. Tighten the bonnet installation bolts.

Height Difference Adjustment

1. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION.)

abs0zw00000274

2. Rotate the stop rubber until the projection is caught in the notch as shown in the figure.

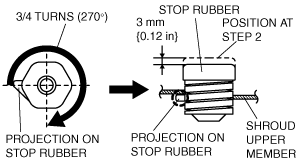

3. Rotate the stop rubber further to the position shown in the figure.

abs0zw00000275

4. Loosen the bonnet lock installation bolts and nut and press the bonnet lock up to the highest position.

abs0zw00000276

5. Tighten the bonnet lock installation bolts.

6. Close the bonnet and loosen the bonnet lock installation bolts.

7. Slightly pull the bonnet lock down by hand to lower and tighten the bonnet lock installation bolts and nut with no excessive play between the bonnet lock and striker.

(1) Tighten the bolts and nut in order to nut A, bolt B and bolt C.

8. Verify that there is no gap between the bonnet and stop rubber.

9. Open the bonnet.
