CONSOLE ILLUMINATION BULB REMOVAL/INSTALLATION

id091800851500

1.  Disconnect the negative battery cable.

2.  Remove the center panel or center panel unit. (See CENTER PANEL REMOVAL/INSTALLATION.) (See CENTER PANEL UNIT REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

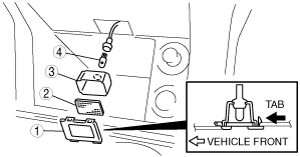

abs0zw00000287

1	Case A
2	Lens
3	Case B
4	Console illumination bulb

4.  Install in the reverse order of removal.
