CYLINDER HEAD DISASSEMBLY(I) [WL-C, WE-C]

id0110b6500400

1.  Disassemble in the order shown in the figure.

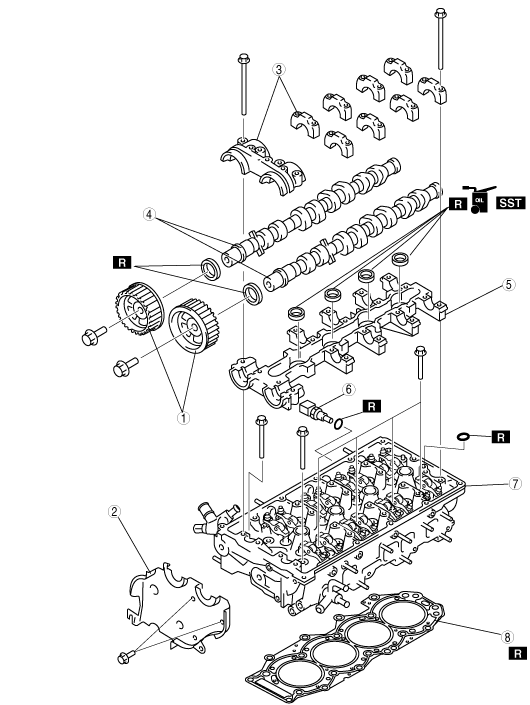

bwl1ge00000156

1	Camshaft pulley (See Camshaft Pulley Disassembly Note.)
2	Seal plate
3	Camshaft cap upper (See Camshaft Cap Upper Disassembly Note.)
4	Camshaft
5	Camshaft cap Lower (See Camshaft Cap Lower Disassembly Note)
6	ECT sensor
7	Cylinder head (See Cylinder Head Disassembly Note.)
8	Cylinder head gasket

Camshaft Pulley Disassembly Note

1.  Hold the camshaft using a wrench on the cast hexagon.

Caution

•  Do not move the camshaft from this position because it can cause the valve and piston to contact each other and damage them.

bwl1ge00000157

Camshaft Cap Upper Disassembly Note

1.  Loosen the camshaft cap bolts in three or four steps in the order shown in the figure.

bwl1ge00000158

Camshaft Disassembly Note

1.  Before removing the camshaft, inspect the camshaft oil clearance. (See CAMSHAFT OIL CLEARANCE INSPECTION [WL-C, WE-C].)

Camshaft Cap Lower Disassembly Note

1.   Tap the oil seal in evenly using the SST and a hammer.

absggw00000525

Cylinder Head Disassembly Note

1.  Remove bolts A.

2.  Loosen the cylinder head bolts in two or three steps in the order shown in the figure.

bwl1ge00000159
