DRIVE BELT ADJUSTMENT [G6]

id011095804500

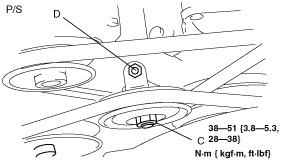

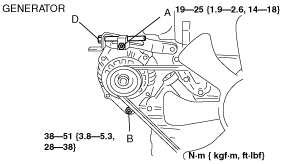

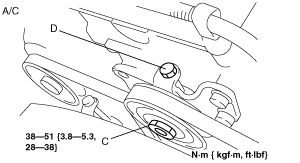

1. Loosen mounting bolts A and B, and locknut C.

2. Adjust the belt deflection or tension by turning the adjusting bolt D. (See DRIVE BELT INSPECTION [G6].)
