OIL COOLER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3]
id011180800800
1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [WLT-1, WLT-2, WL-3].)
3. Remove the turbocharger. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-3].)
4. Remove the oil filter. (See OIL FILTER REPLACEMENT [WLT-1, WLT-2, WL-3].)

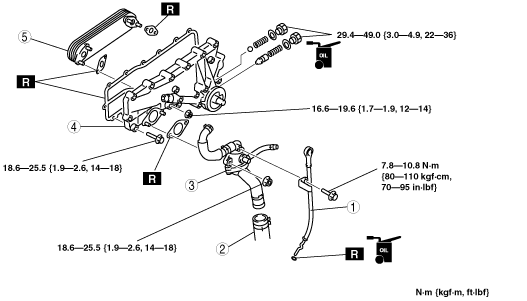

5. Remove in the order shown in the figure.
6. Install in the reverse order of removal.
7. Fill the radiator with the specified amount and type of engine coolant. (See ENGINE COOLANT REPLACEMENT [WLT-1, WLT-2, WL-3].)
8. Inspect the engine oil level. (See ENGINE OIL LEVEL INSPECTION [WLT-1, WLT-2, WL-3].)
9. Start the engine and inspect for engine coolant leakage.
absggw00001610
|
|
1
|
Dipstick pipe
|
|
2
|
Radiator hose
|
|
3
|
Thermostat case
|
|
4
|
Oil cooler body
|
|
5
|
Oil cooler
|
Oil Cooler Body Installation Note
