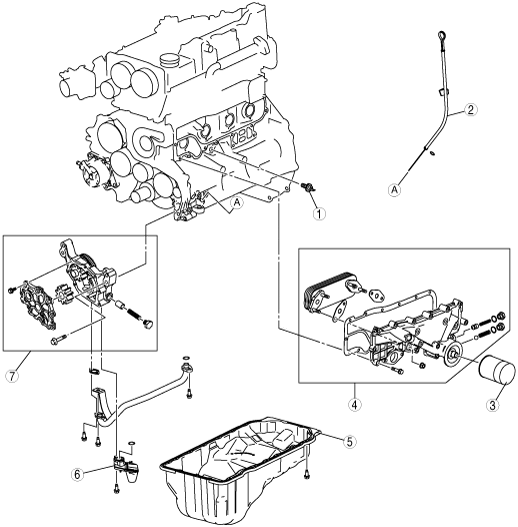

LUBRICATION SYSTEM LOCATION INDEX [WL-C, WE-C]

id0111b6800100

dbg110bwb78r

1	Oil pressure switch (See OIL PRESSURE INSPECTION [WL-C, WE-C].)
2	Oil level gauge (See ENGINE OIL LEVEL INSPECTION [WL-C, WE-C].) (See ENGINE OIL REPLACEMENT [WL-C, WE-C].)
3	Oil filter (See OIL FILTER REPLACEMENT [WL-C, WE-C].)
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [WL-C, WE-C].) (See OIL COOLER BODY INSPECTION [WL-C, WE-C].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [WL-C, WE-C].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [WL-C, WE-C].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [WL-C, WE-C].) (See OIL PUMP INSPECTION [WL-C, WE-C].)
