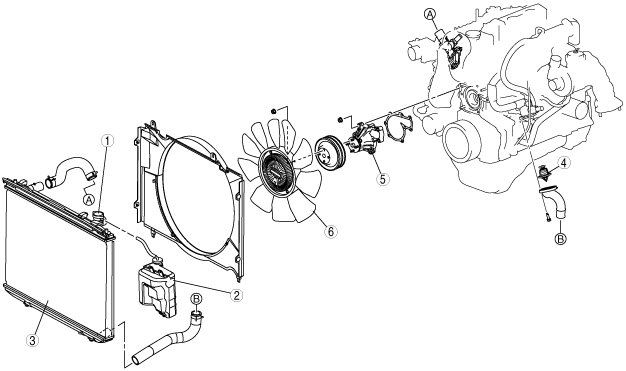

COOLING SYSTEM LOCATION INDEX [WLT-1, WLT-2, WL-3]

id011280800100

absggw00001612

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [WLT-1, WLT-2, WL-3].)
2	Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)
3	Radiator (See RADIATOR REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].) (See THERMOSTAT INSPECTION [WLT-1, WLT-2, WL-3].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)
6	Cooling fan (See COOLING FAN REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].) (See COOLING FAN INSPECTION [WLT-1, WLT-2, WL-3].)
