GLOW PLUG INSPECTION [WL-3]

id0113a9804300

1.  Remove the glow plug cord. (See GLOW PLUG REMOVAL/INSTALLATION [WL-3].)

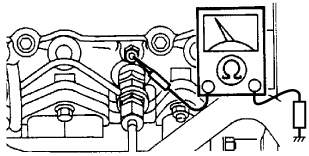

2.  Measure the resistance between the glow plug terminal and the cylinder head (body ground) using an ohmmeter.

•  If not as specified, replace the glow plug. (See GLOW PLUG REMOVAL/INSTALLATION [WL-3].)
dbg113awb304
Glow plug resistance (Reference value)
Approx. 0.5 ohm [20°C {68°F}]
