ACCELERATOR PEDAL COMPONENT REMOVAL/INSTALLATION [WL-3]

id0113a9807300

1.  Disconnect the negative battery cable.

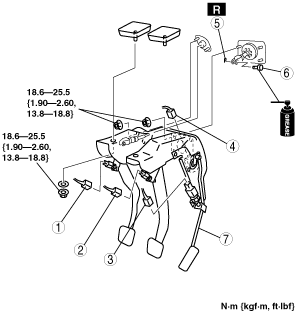

2.  Remove in the order indicated in the table.

dbg113awb305

1
Neutral switch connector
2
Brake switch connector
3
Idle switch connector
4
APP sensor connector
5
Spring pin
6
Clevis pin
7
Pedal component (See Pedal Component Installation Note.)

3.  Install in the reverse order of removal.


Pedal Component Installation Note

•  Carry out the “BRAKE PEDAL INSPECTION” procedure after installing the pedal component. (See BRAKE SWITCH INSPECTION.)
•  Carry out the “CLUTCH PEDAL ADJUSTMENT” procedure after installing the pedal component. (See CLUTCH PEDAL ADJUSTMENT.)
