EMISSION SYSTEM LOCATION INDEX [WLT-1, WLT-2]

id011696803700

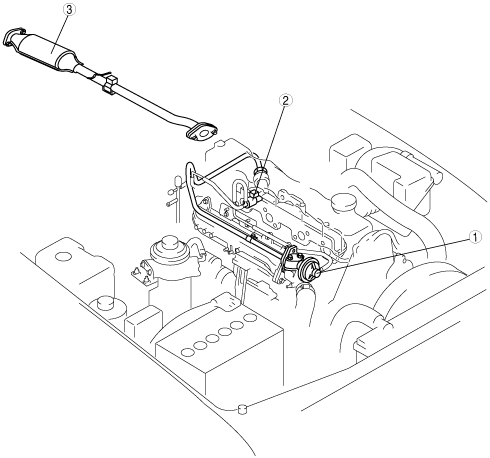

Engine Room Side

absggw00000280

1	EGR valve (WLT-2) (See EGR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See EGR VALVE INSPECTION [WLT-1, WLT-2].)
2	EGR solenoid valve (WLT-2) (See EGR SOLENOID VALVE INSPECTION [WLT-1, WLT-2].)
3	Oxidation catalytic converter (WLT-2) (See EGR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].)

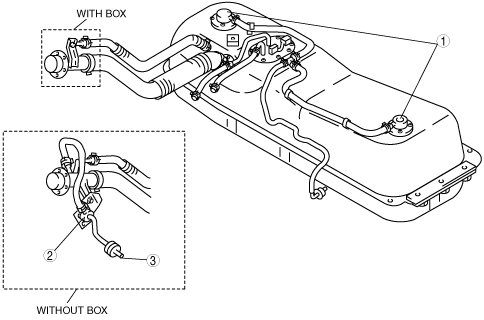

Fuel Tank Side

Double cab 4x2, Freestyle cab 4x2

absggw00000281

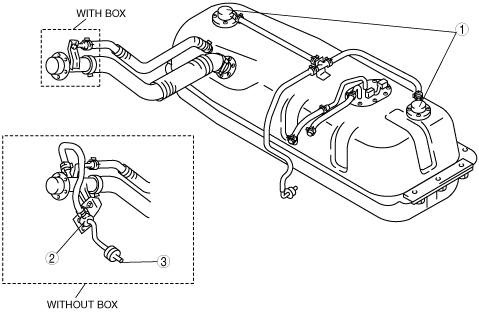

Regular cab, Double cab 4x4, Freestyle cab 4x4

absggw00000282

1	Rollover valve (See ROLLOVER VALVE INSPECTION [WLT-1, WLT-2].)
2	Check valve (two-way) (See CHECK VALVE (TWO-WAY) INSPECTION [WLT-1, WLT-2].)
3	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [WLT-1, WLT-2].)
