STARTER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C]

id011997800200

Warning

•  When the battery cables are connected, touching the vehicle body with starter terminal B will generate sparks. This can cause personal injury, fire, and damage to the electrical components. Always disconnect the negative battery cable before performing the following operation.

1.  Remove the engine cover. (WL-C, WE-C)

2.  Remove the battery. (WLT-1, WLT-2, WL-3) (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)

3.  Remove the battery and battery tray. (WL-C, WE-C) (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)

4.  Set the fuel filter component slightly out of the way. (WL-C, WE-C) (See FUEL FILTER REMOVAL/INSTALLATION [WL-C, WE-C].)

5.  Set the bracket that secure the intake shutter solenoid valve out of the way. (WL-C, WE-C)

6.  Remove in the order indicated in the table.

7.  Install in the reverse order of removal.

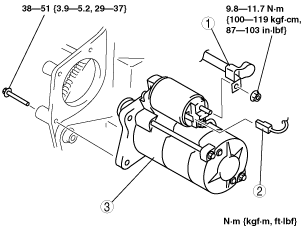

arnffw00001028

1	Terminal B cable
2	Terminal S connector
3	Starter (See Starter Installation Note.)

Starter Installation Note

1.  Temporarily tighten the installation bolts.

2.  Tighten the installation bolts.
