MOTOR REMOVAL/INSTALLATION [5R55S]

id0316c1815800

Caution

•  Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.

•  Do not damage the motor.

1.  Disconnect the negative battery cable.

2.  Remove the transfer case under cover. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [5R55S].)

3.  Remove in the order indicated in the table.

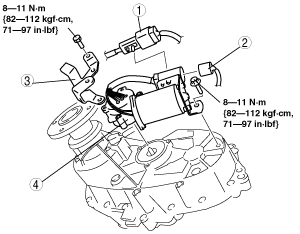

arnffw00001915

1	Speed sensor connector
2	Connector
3	Speed sensor bracket
4	Motor

4.  Install in the reverse order of removal.
