JOINT SHAFT COMPONENT REMOVAL/INSTALLATION

id031800801400

1.  Drain the front differential oil.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  Add the front differential oil. (See FRONT DIFFERENTIAL OIL REPLACEMENT.)

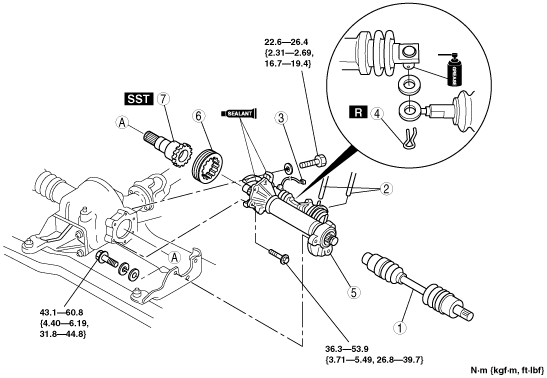

absggw00001703

1	Drive shaft (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [G6, WLT-1, WLT-2].) (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [WL-C, WE-C].)
2	Vacuum hose
3	RFW switch connector
4	Snap pin
5	Joint shaft component, control box component
6	Gear sleeve
7	Output shaft (See Output Shaft Removal Note.)

Output Shaft Removal Note

1.  Remove the output shaft using the SST.

absggw00001704
