DISC PAD (FRONT) REPLACEMENT [4x2 (EXCEPT HIGH CLEARANCE MODEL)]

id0411008007a6

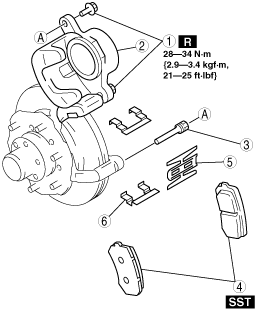

1.  Remove in the order indicated in the table.

absggw00001191

1	Bolt
2	Caliper
3	Guide pin
4	Disc pad (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)
5	Plate
6	Guide plate

2.  Install in the reverse order of removal.
