FRONT BRAKE (DISC) REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)]

id0411008009a6

Note

•  Because the disc plate is installed to the front wheel hub, refer to WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION to remove it. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)].)

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, depress the pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

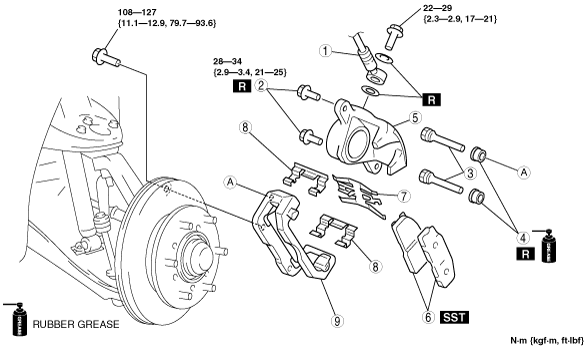

absggw00001193

1	Brake hose
2	Bolt
3	Guide pin
4	Dust boot
5	Caliper
6	Disc pad (See Disc Pad Installation Note)
7	Plate
8	Guide plate
9	Mounting support

Disc Pad Installation Note

1.  Push the piston fully inward using the SST.

absggw00001194

2.  Install the disc pad.
