VACUUM PUMP REMOVAL/INSTALLATION

id041100803600

1.  Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)

2.  Remove the clip shown in the figure.

absggw00001632

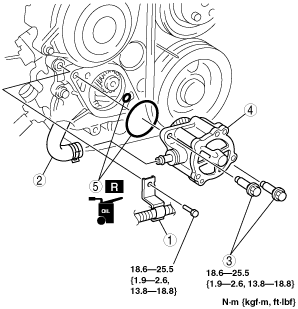

3.  Remove in the order indicated in the table.

absggw00001633

1	Bracket (WL-C, WE-C)
2	Vacuum hose
3	Bolt
4	Vacuum pump
5	O-ring

4.  Install in the reverse order of removal.
