DIGITAL TRANSMISSION RANGE (TR) SENSOR INSPECTION [5R55S]

id0513c1254700

Operating Inspection

1.  Verify that the starter operates only when the engine switch is turned to the START position with the selector lever in the P or N position.

•  If there is any malfunction, adjust the digital TR sensor. (See DIGITAL TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT [5R55S].)

2.  Verify that the back-up lights illuminate when shifted to the R position with the engine switch at the ON position.

•  If there is any malfunction, adjust the digital TR sensor. (See DIGITAL TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT [5R55S].)

3.  Verify that the positions of the selector lever and the indicator are aligned.

absggw00001014

•  If there is any malfunction, adjust the digital TR sensor. (See DIGITAL TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT [5R55S].)

Continuity Inspection

Caution

•  Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.

1.  Disconnect the negative battery cable.

2.  Remove the digital TR sensor insulator.

absggw00001811

3.  Disconnect the digital TR sensor connector.

absggw00001812

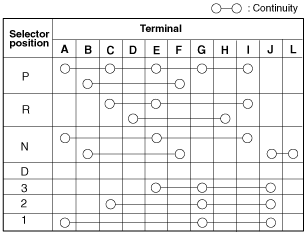

4.  Verify that the continuity is as indicated in the table.

absggw00001017

•  If there is any malfunction, adjust the digital TR sensor. (See DIGITAL TRANSMISSION RANGE (TR) SENSOR ADJUSTMENT [5R55S].)

absggw00001018

5.  Reinspect for continuity at digital TR sensor.

•  If there is any malfunction, replace the digital TR sensor. (See DIGITAL TRANSMISSION RANGE (TR) SENSOR REMOVAL/INSTALLATION [5R55S].)

6.  Connect the digital TR sensor connector.

7.  Install the digital TR sensor insulator.

absggw00001811

8.  Connect the negative battery cable.
