SELECTOR LEVER REMOVAL/INSTALLATION
id051400255700
1. Disconnect the negative battery cable.
2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)
3. Shift the selector lever to the P position.

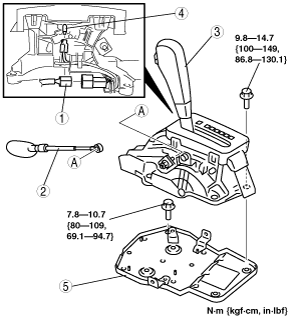

4. Remove in the order indicated in the table.
arnffw00001930
|
|
1
|
Connector
|
|
2
|
Selector cable
|
|
3
|
Selector lever
|
|
4
|
Bulb
|
|
5
|
Selector lever bracket
|
5. Install in the reverse order of removal.
Selector Cable Installation Note
1. Shift the selector lever to the N position.
2. Loosen the nut at approx. 90°.
3. Adjustment the end of the selector cable position.
absggw00001019
|
4. Tighten the nut.
