POWER STEERING OIL PUMP REMOVAL/INSTALLATION [G6]

id0614008007f2

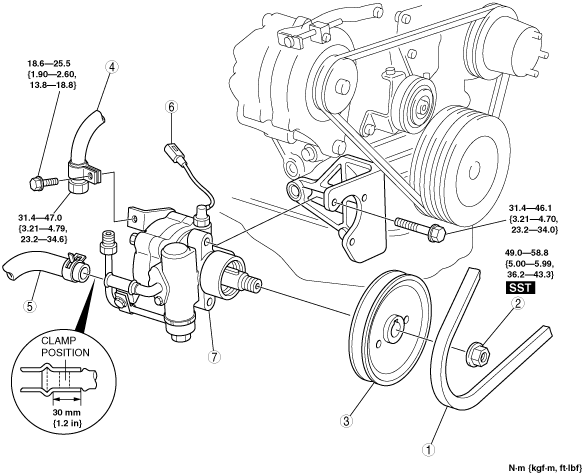

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

absggw00000840

1	Drive belt (See DRIVE BELT ADJUSTMENT [G6].)
2	Locknut (See Locknut Removal Note.)
3	Oil pump pulley
4	Pressure pipe
5	Return hose
6	Power steering fluid pressure switch connector
7	Power steering oil pump component

Locknut Removal Note

1.  Secure the pulley using the SST and remove the locknut.

arnffw00000402
