REAR ACCESS PANEL DISASSEMBLY/ASSEMBLY

id091000803000

1.  Remove the rear access panel. (SeeREAR ACCESS PANEL REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

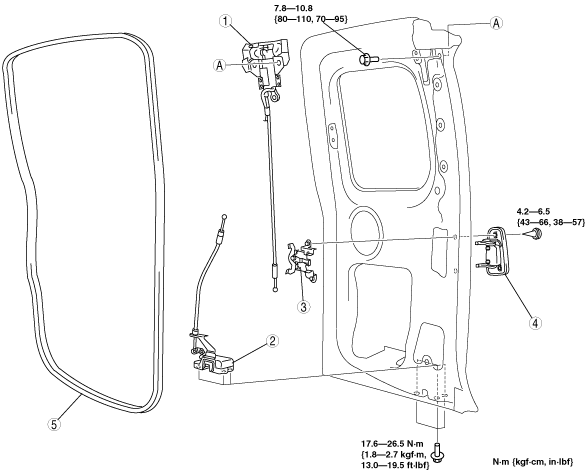

abr7714w005

1	Upper latch
2	Lower latch
3	Rear access panel remote controller
4	Outer handle
5	Weatherstrip

3.  Assemble in the reverse order of disassembly.
