REAR DOOR GLASS AND REAR WINDOW REGULATOR REMOVAL/INSTALLATION

id091200813700

1.  Disconnect the negative battery cable.(Vehicles with the power window system)

2.  Remove the regulator handle.(Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

4.  Remove the screen.

5.  Remove the screws.

dcf912zwb003

6.  Remove the glass hole lid.

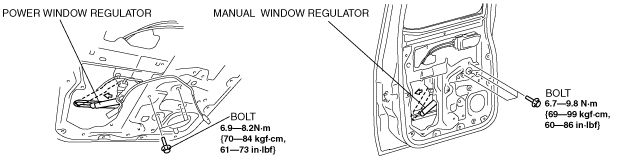

7.  Lift the rear door glass and remove the bolts.

dcf912zwb004

8.  Slide the window regulator link to the rear of the rear door glass.

9.  Remove the rear window regulator through the service hole.

dcf912zwb200

10.  Draw out the rear door glass through the glass hole.

dcf912zwb005

11.  Install in the reverse order of removal.
