FRONT COMBINATION LIGHT REMOVAL/INSTALLATION
id091800800700
1. Disconnect the negative battery cable.
2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

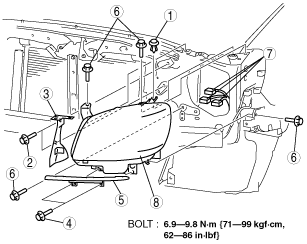

3. Remove in the order indicated in the table.
dbg918zwb202
|
|
1
|
Fastener
|
|
2
|
Bolt A
|
|
3
|
Bracket A
|
|
4
|
Bolt B
|
|
5
|
Bracket B
|
|
6
|
Bolt C
|
|
7
|
Connector
|
|
8
|
Front combination light
|
4. Install in the reverse order of removal.
5. Adjust the headlight aiming. (SeeHEADLIGHT AIMING)
