Oil pump removal (RZ4E-TC)

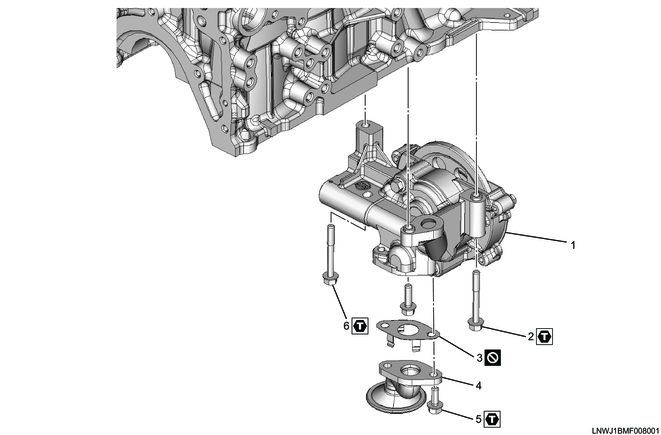

1. Component views

Oil pump

Part name

  1. Oil pump
  2. Bolt
  3. Gasket
  4. Oil strainer
  5. Bolt
  6. Bolt

Tightening torque

2: 25 N・m { 2.5 kgf・m / 18 lb・ft }

5: 25 N・m { 2.5 kgf・m / 18 lb・ft }

6: 25 N・m { 2.5 kgf・m / 18 lb・ft }

2. Crankcase removal

Refer to "1.Engine 1B.Mechanical(RZ4E-TC) Crankcase removal".

3. Oil pump removal

1) Remove the oil pump from the cylinder block.
