Oil cooler removal (RZ4E-TC)

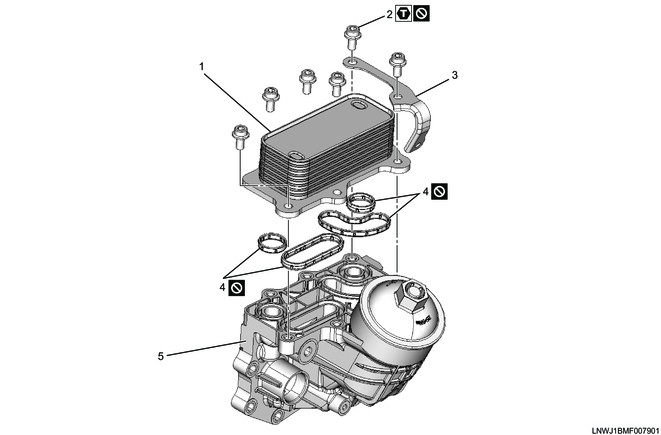

1. Component views

Oil cooler

Part name

  1. Oil cooler
  2. Bolt
  3. Bracket
  4. Gasket
  5. Oil filter

Tightening torque

2: 12 N・m { 1.2 kgf・m / 106 lb・in }

2. EGR cooler removal

Refer to "1.Engine 1H.Aux. Emission Control Devices(RZ4E-TC) EGR removal".

3. Oil cooler removal

1) Remove the oil cooler from the oil filter.

Legend

  1. Oil cooler
  2. Bracket
  3. Oil filter
  4. Gasket
