rear buckle side seat belt removal

1. Component views

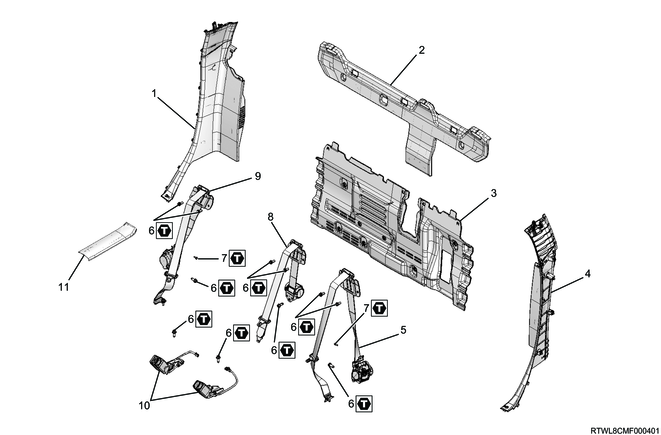

Rear seat belt (Crew cab)

Part name

Tightening torque

6: 46 N・m { 4.7 kgf・m / 34 lb・ft }

7: 8.2 N・m { 0.8 kgf・m / 73 lb・in }

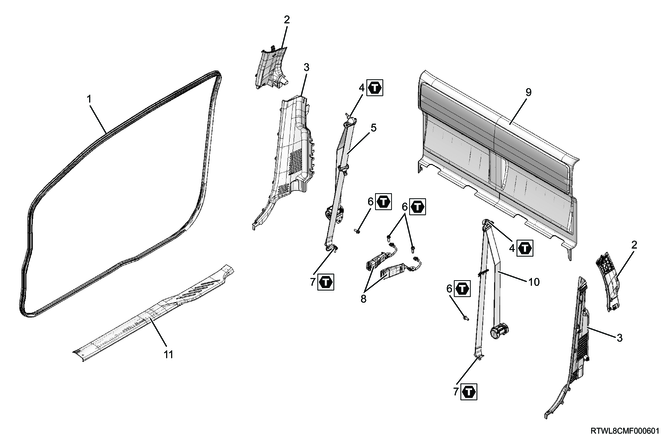

Rear seat belt (Extend cab)

Part name

Tightening torque

4: 46 N⋅m {4.7 kgf⋅m / 34 lb⋅ft}

6: 46 N⋅m {4.7 kgf⋅m / 34 lb⋅ft}

7: 46 N⋅m {4.7 kgf⋅m / 34 lb⋅ft}

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

Caution

After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.

1) Disconnect the connector from the rear buckle side seat belt.

2) Remove the rear buckle side seat belt from the floor panel.

Crew cab

Legend

Extend cab

Legend
